Magnetic filter grids of hard ferrite or NdFeB

Magnetic filter grids made of hard ferrite, funnel shape 60°, stainless steel housing 1.4301

APPLICATION:
Filter systems easily separate iron particles and chips being produced by abrasion or soiling from the material. Filters work reliably and almost wear-free. This extends the useful life of the production line and prevents the risk of expensive maintenance and cleaning work.

PRODUCT INFORMATION:
The above mentioned filter bars are our standard designs. Here the end pieces are not sealed tight and therefore only suitable for dry applications.

Not available ex stock, manufactured on demand

Alternative to the standard we also offer individual solutions:
» Seal-welded model for use in liquids (e.g. water, coolant)
» High-quality stainless steel enclosure for use in food production
» Increasing the max. operating temperature up to 350 °C
» Manufacture of individual, not standardised sizes

Data sheet
Article numberL mmB mmH mmTemperature °CNumber of magnetic filter bars

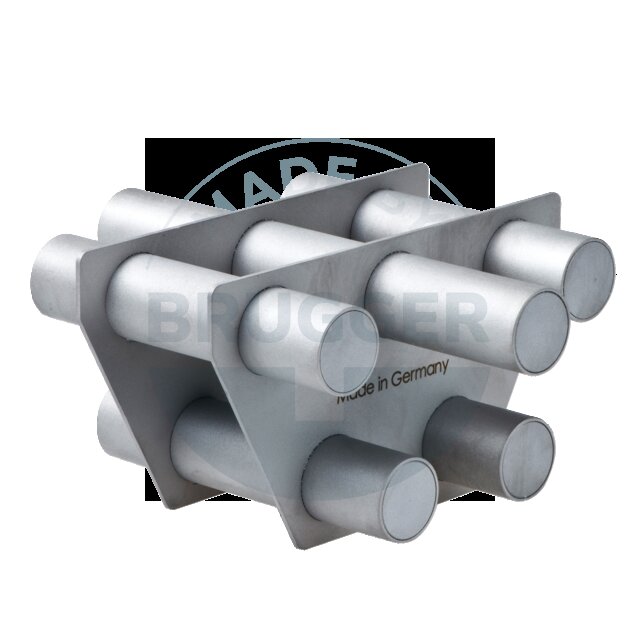

MS130HFSo00rh0013014575805 Download CAD file

Magnetfilter aus Hartferrit, Trichterform 60°, Edelstahlgehäuse 1.4301, mit 5 Filterstäben

Article number: MS130HFSo00rh00
L mm: 130
B mm: 145
H mm: 75
Temperature °C: 80
Number of magnetic filter bars: 5

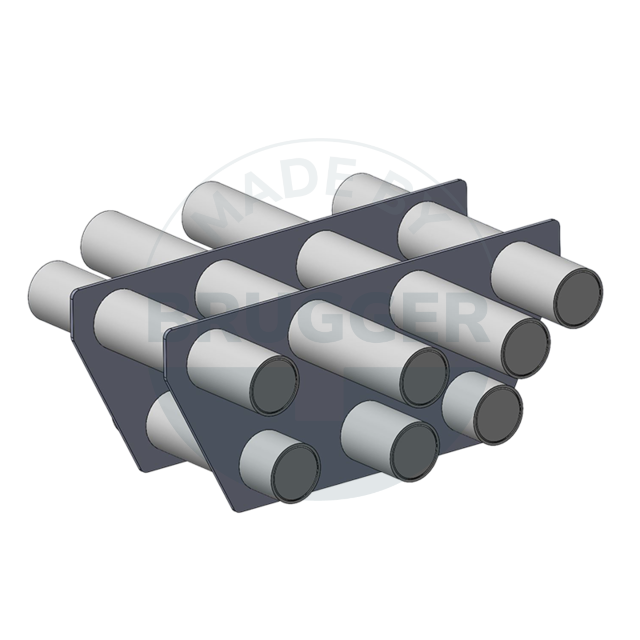

MS175HFSo00rh0017518075807 Download CAD file

Magnetfilter aus Hartferrit, Trichterform 60°, Edelstahlgehäuse 1.4301, mit 7 Filterstäben

Article number: MS175HFSo00rh00
L mm: 175
B mm: 180
H mm: 75
Temperature °C: 80
Number of magnetic filter bars: 7
