Magnetic filter bars of hard ferrite or NdFeB

Magnetic filter rods ø25mm made of NdFeB, internal thread on both sides, stainless steel housing made of 1.4301

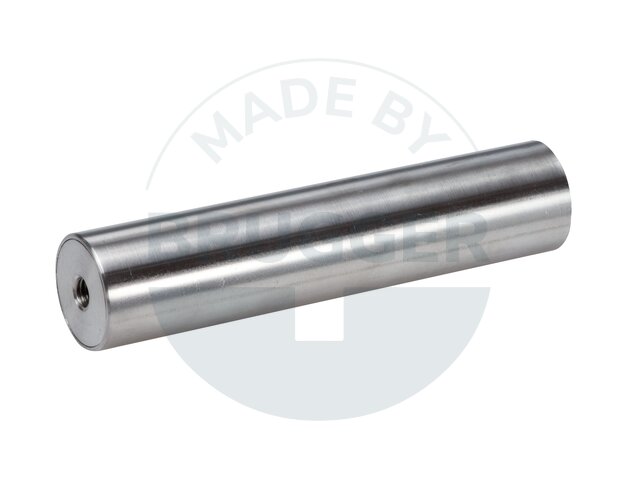

Magnetic filter bar made of NdFeB ⌀25mm with internal thread on both sides | © Brugger GmbH
technical drawing Magnetic filter rods made of NdFeB | © Brugger GmbH
Magnetic filter bar made of NdFeB ⌀25mm with internal thread on both sides | © Brugger GmbH
technical drawing Magnetic filter rods made of NdFeB | © Brugger GmbH

APPLICATION:
Our filter systems effortlessly remove ferrous particles and chips from your material - ideal for abrasion or contamination. The smooth stainless steel casing enables easy cleaning by wiping or compressed air. Thanks to reliable, low-wear technology, the service life of your system is extended and you save on maintenance and cleaning costs.

PRODUCT INFORMATION:
Our filter systems are designed as standard for use in dry environments. Typical areas of application are wood, plastics and recycling systems

No stock items, made to order

As an alternative to the standard version, we also offer customised solutions:
" Seal-welded version for use in liquids (e.g. water, coolant)
" Other fastening adaptations are possible (e.g. external, internal and inch threads)
" High-quality stainless steel cover for use in food production
" Increase in max. operating temperature up to 350°C
" Production of individual and non-standardised lengths possible up to max. 2000 mm

Data sheet
Article numberD mmL mmThread MxLTemperature °C
MS025NdA-06rh0025100M6x680 Download CAD file

Filterstab ø25mm aus NdFeB, beidseitiges Innengewinde, Edelstahlgehäuse 1.4301, in der Länge 100mm

Article number: MS025NdA-06rh00
D mm: 25
L mm: 100
Thread MxL: M6x6
Temperature °C: 80
MS025NdA-06rh0125150M6x680 Download CAD file

Filterstab ø25mm aus NdFeB, beidseitiges Innengewinde, Edelstahlgehäuse 1.4301, in der Länge 150mm

Article number: MS025NdA-06rh01
D mm: 25
L mm: 150
Thread MxL: M6x6
Temperature °C: 80
MS025NdA-06rh0225200M6x680 Download CAD file

Filterstab ø25mm aus NdFeB, beidseitiges Innengewinde, Edelstahlgehäuse 1.4301, in der Länge 200mm

Article number: MS025NdA-06rh02
D mm: 25
L mm: 200
Thread MxL: M6x6
Temperature °C: 80
MS025NdA-06rh0325250M6x680 Download CAD file

Filterstab ø25mm aus NdFeB, beidseitiges Innengewinde, Edelstahlgehäuse 1.4301, in der Länge 250mm

Article number: MS025NdA-06rh03
D mm: 25
L mm: 250
Thread MxL: M6x6
Temperature °C: 80
MS025NdA-06rh0425300M6x680 Download CAD file

Filterstab ø25mm aus NdFeB, beidseitiges Innengewinde, Edelstahlgehäuse 1.4301, in der Länge 300mm

Article number: MS025NdA-06rh04
D mm: 25
L mm: 300
Thread MxL: M6x6
Temperature °C: 80
MS025NdA-06rh0525350M6x680 Download CAD file

Filterstab ø25mm aus NdFeB, beidseitiges Innengewinde, Edelstahlgehäuse 1.4301, in der Länge 350mm

Article number: MS025NdA-06rh05
D mm: 25
L mm: 350
Thread MxL: M6x6
Temperature °C: 80
MS025NdA-06rh0625400M6x680 Download CAD file

Filterstab ø25mm aus NdFeB, beidseitiges Innengewinde, Edelstahlgehäuse 1.4301, in der Länge 400mm

Article number: MS025NdA-06rh06
D mm: 25
L mm: 400
Thread MxL: M6x6
Temperature °C: 80
MS025NdA-06rh0725450M6x680 Download CAD file

Filterstab ø25mm aus NdFeB, beidseitiges Innengewinde, Edelstahlgehäuse 1.4301, in der Länge 450mm

Article number: MS025NdA-06rh07
D mm: 25
L mm: 450
Thread MxL: M6x6
Temperature °C: 80
MS025NdA-06rh0825500M6x680 Download CAD file

Filterstab ø25mm aus NdFeB, beidseitiges Innengewinde, Edelstahlgehäuse 1.4301, in der Länge 500mm

Article number: MS025NdA-06rh08
D mm: 25
L mm: 500
Thread MxL: M6x6
Temperature °C: 80
MS025NdA-06rh0925550M6x680 Download CAD file

Filterstab ø25mm aus NdFeB, beidseitiges Innengewinde, Edelstahlgehäuse 1.4301, in der Länge 550mm

Article number: MS025NdA-06rh09
D mm: 25
L mm: 550
Thread MxL: M6x6
Temperature °C: 80
MS025NdA-06rh1025600M6x680 Download CAD file

Filterstab ø25mm aus NdFeB, beidseitiges Innengewinde, Edelstahlgehäuse 1.4301, in der Länge 600mm

Article number: MS025NdA-06rh10
D mm: 25
L mm: 600
Thread MxL: M6x6
Temperature °C: 80
