Metal disc with bore and countersink, 90° stop edge

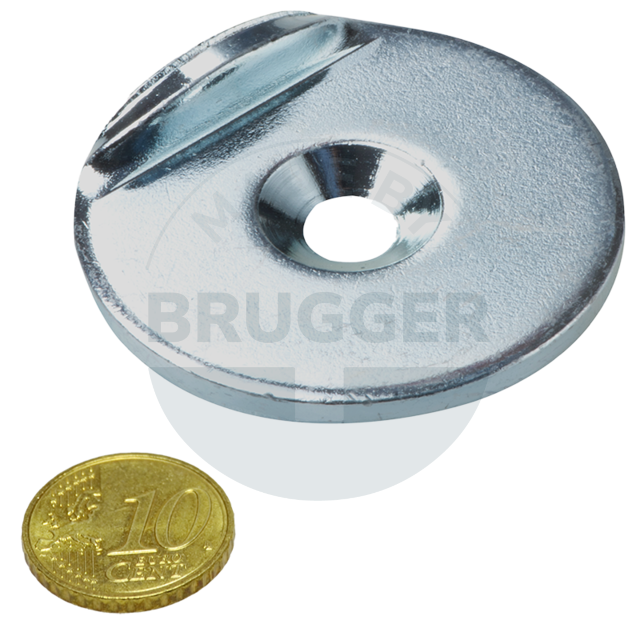

Metal disc with bore and counter bore, stop edge 90° | © Brugger GmbH
Metal disc with bore and counter bore, stop edge 90° | © Brugger GmbH
technical drawing Metal disc with bore and countersink | © Brugger GmbH

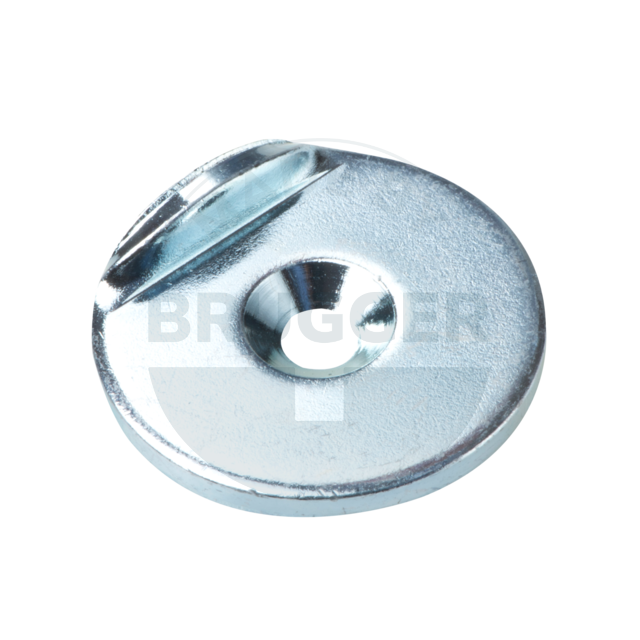

Metal disc with bore and counter bore, stop edge 90° | © Brugger GmbH
Metal disc with bore and counter bore, stop edge 90° | © Brugger GmbH
technical drawing Metal disc with bore and countersink | © Brugger GmbH

With our metal disc with bore and countersink as well as a 90° stop edge, we solve the problem of securely suspending heavy or large objects with magnets. No more slipping and unexpected shear and leverage forces! Simply place the object on the holding edge or place the magnet directly on it and attach heavy objects without any problems.

Data sheet
Product variants
Article numberD mmd mmH mmh mmW mmSurfaceWeight g
Sb027StSo00v-0027 5,5 +1/07.7321galvanised13 Download CAD file

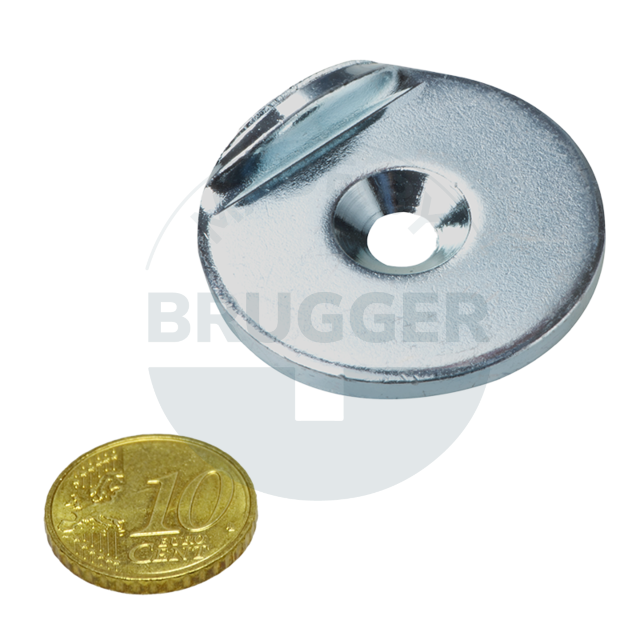

Metal disc with bore and counter bore, stop edge 90° | © Brugger GmbH
Article number: Sb027StSo00v-00
D mm: 27
d mm: 5,5 +1/0
H mm: 7.7
h mm: 3
W mm: 21
Surface: galvanised
Weight g: 13
Sb034StSo00v-0134.5 6 +1/08.4329.2galvanised22 Download CAD file
Metal disc with bore and counter bore, stop edge 90° | © Brugger GmbH
Article number: Sb034StSo00v-01
D mm: 34.5
d mm: 6 +1/0
H mm: 8.4
h mm: 3
W mm: 29.2
Surface: galvanised
Weight g: 22
Sb045StSo00v-0045 5,5 +1/07.8339galvanised37 Download CAD file
Metal disc with bore and counter bore, stop edge 90° | © Brugger GmbH
Article number: Sb045StSo00v-00
D mm: 45
d mm: 5,5 +1/0
H mm: 7.8
h mm: 3
W mm: 39
Surface: galvanised
Weight g: 37
Sb064StSo00v-0064 5,5 +1/07.7358galvanised75 Download CAD file
Metal disc with bore and counter bore, stop edge 90° | © Brugger GmbH
Article number: Sb064StSo00v-00
D mm: 64
d mm: 5,5 +1/0
H mm: 7.7
h mm: 3
W mm: 58
Surface: galvanised
Weight g: 75
