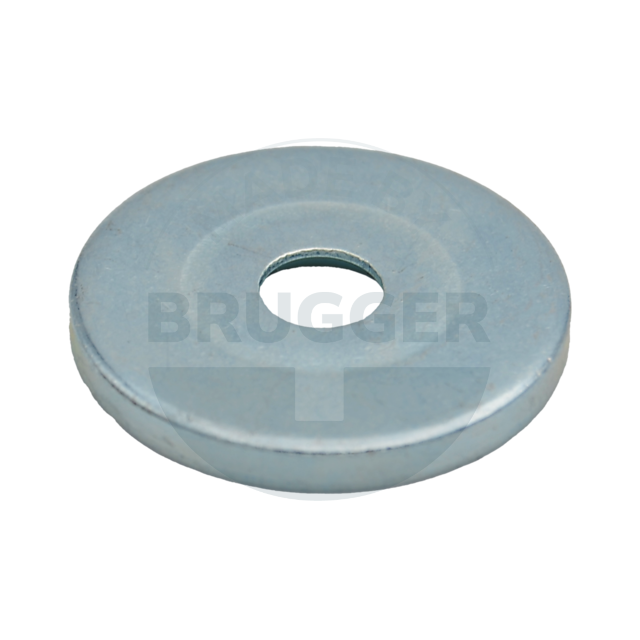

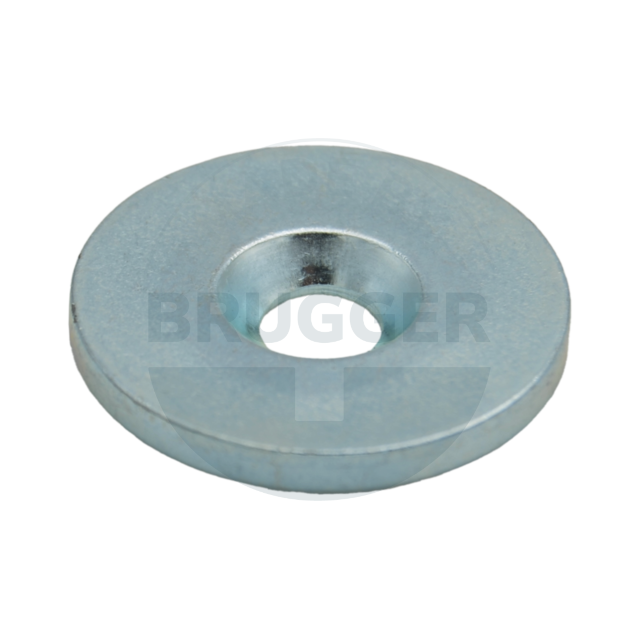

Metal disc with bore and counter bore | © Brugger GmbH

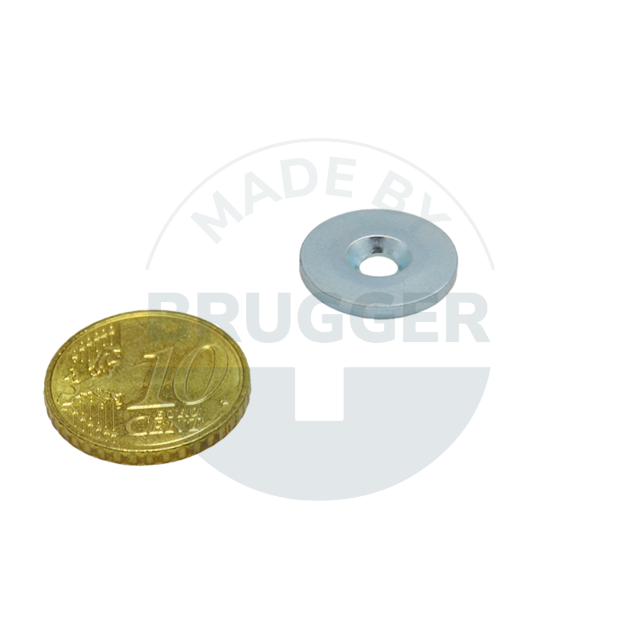

Metal disc with bore and counter bore | © Brugger GmbH

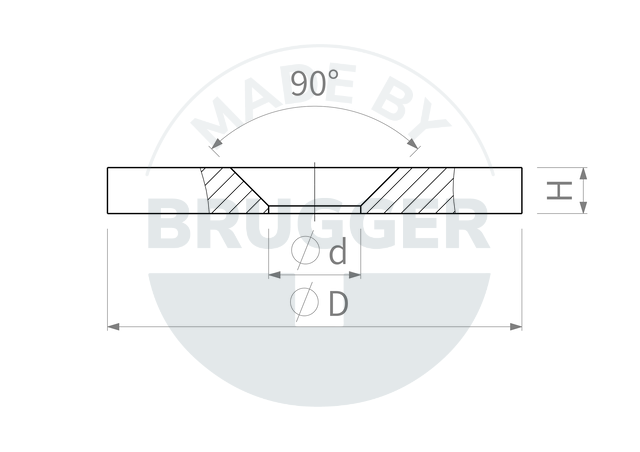

technical drawing Metal disc with bore and countersink | © Brugger GmbH

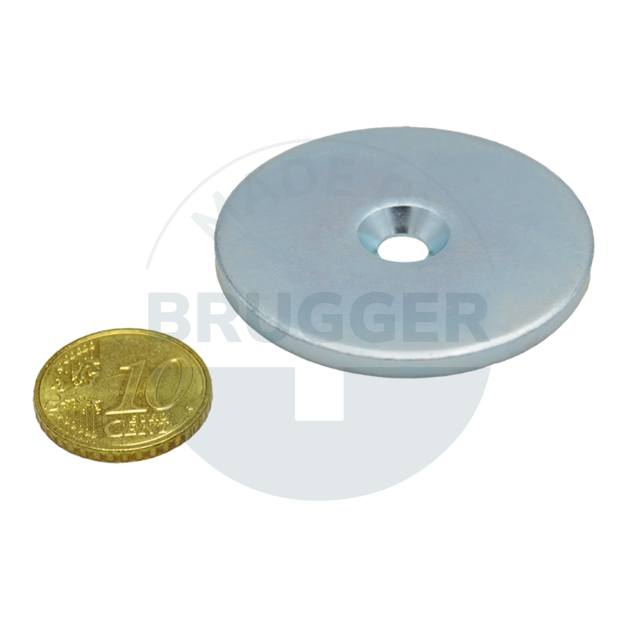

Metal disc with bore and counter bore | © Brugger GmbH

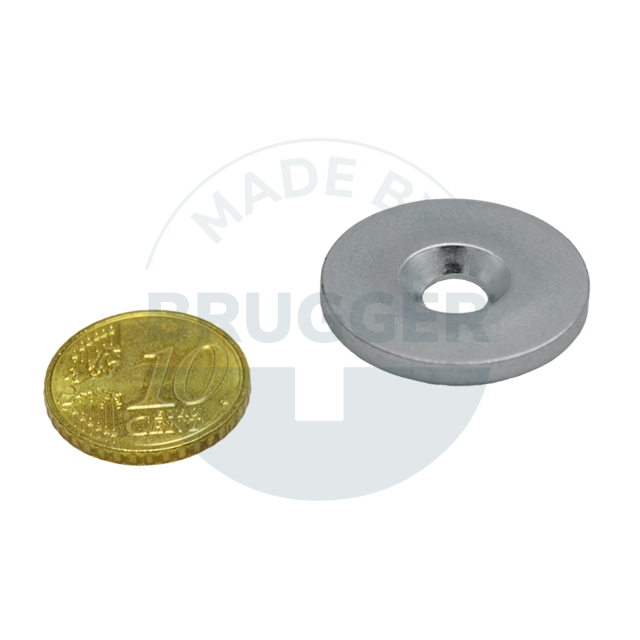

Metal disc with bore and counter bore | © Brugger GmbH

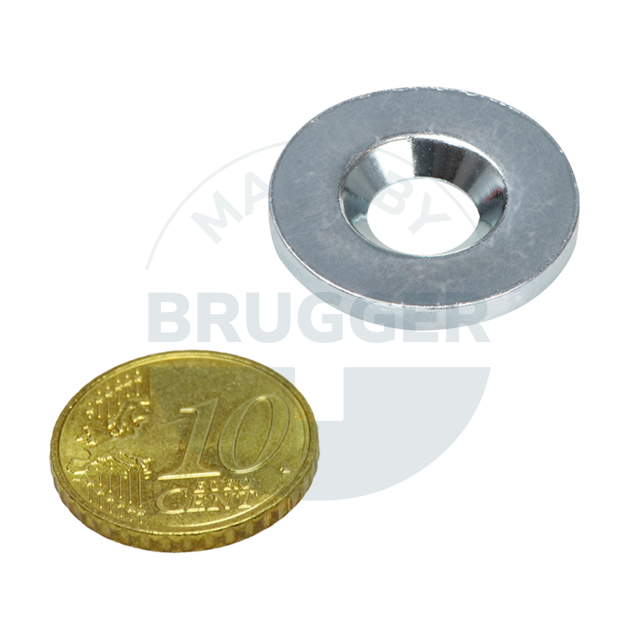

technical drawing Metal disc with bore and countersink | © Brugger GmbH

Metal discs are strong helpers when it comes to attaching our magnets. With their drilled and countersunk holes, they are ideal adhesive surfaces that can be screwed together seamlessly with a countersunk screw. The best thing about them is that they can also be easily mounted on non-magnetic surfaces, where they serve as a point of attraction for our magnet systems.

Important! Please note that the metal discs themselves are not magnetic, but merely act as a point of attraction for our magnets.

Data sheet
Product variants
Article numberD mmd mmH mmSurfaceWeight g
SCH-12vBS12 +0.1/-0.13,5 +1/02galvanised1.5 Download CAD file
Metal disc with bore and counter bore | © Brugger GmbH
Article number: SCH-12vBS
D mm: 12 +0.1/-0.1
d mm: 3,5 +1/0
H mm: 2
Surface: galvanised
Weight g: 1.5

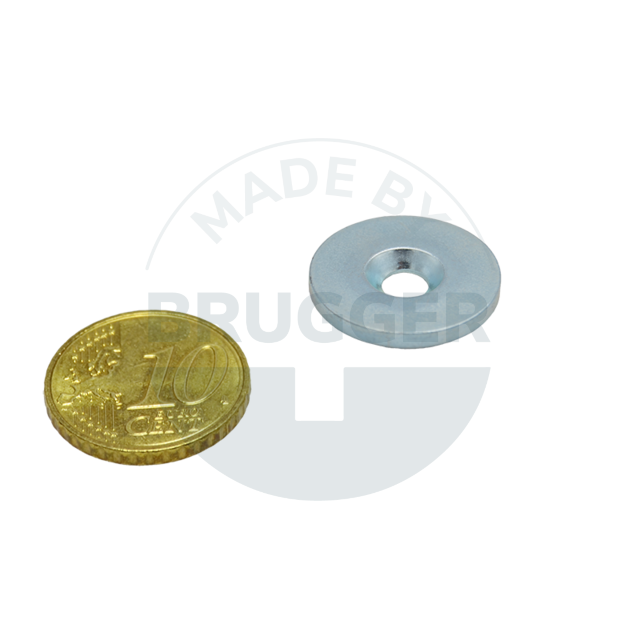

SCH-17vBS17 +0.1/-0.15,5 +1/02galvanised4 Download CAD file
Metal disc with bore and counter bore | © Brugger GmbH
Article number: SCH-17vBS
D mm: 17 +0.1/-0.1
d mm: 5,5 +1/0
H mm: 2
Surface: galvanised
Weight g: 4
SCH-23.7x1.5niB23.7 +0.2/-0.25 +1/01.5nickel-plated5 Download CAD file
Metal disc with bore and counter bore | © Brugger GmbH
Article number: SCH-23.7x1.5niB
D mm: 23.7 +0.2/-0.2
d mm: 5 +1/0
H mm: 1.5
Surface: nickel-plated
Weight g: 5
SCH-27VABS27.3 +0.2/-0.25,5 +1/03bright (stainless steel)12 Download CAD file
Metal disc with bore and counter bore | © Brugger GmbH
Article number: SCH-27VABS
D mm: 27.3 +0.2/-0.2
d mm: 5,5 +1/0
H mm: 3
Surface: bright (stainless steel)
Weight g: 12

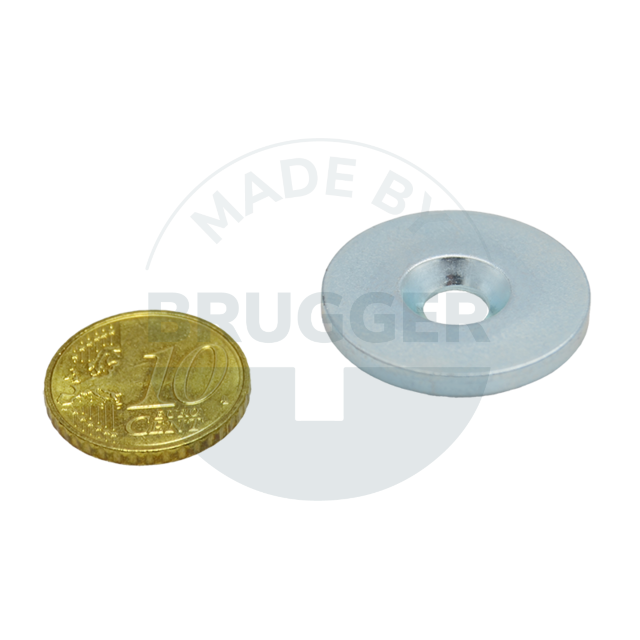

SCH-27vBS27 +0.2/-0.25,5 +1/03galvanised12 Download CAD file
Metal disc with bore and counter bore | © Brugger GmbH
Article number: SCH-27vBS
D mm: 27 +0.2/-0.2
d mm: 5,5 +1/0
H mm: 3
Surface: galvanised
Weight g: 12

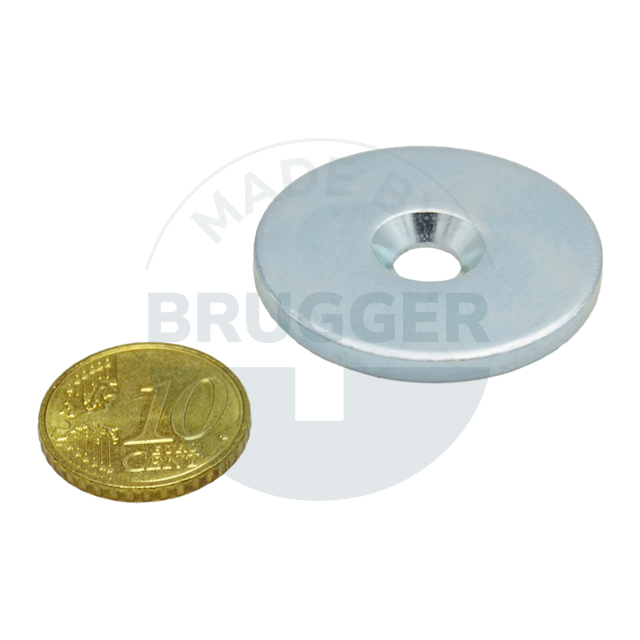

SCH-34vBS34.5 +0.2/-0.26 +1/03galvanised20 Download CAD file
Metal disc with bore and counter bore, stop edge 90° | © Brugger GmbH
Article number: SCH-34vBS
D mm: 34.5 +0.2/-0.2
d mm: 6 +1/0
H mm: 3
Surface: galvanised
Weight g: 20

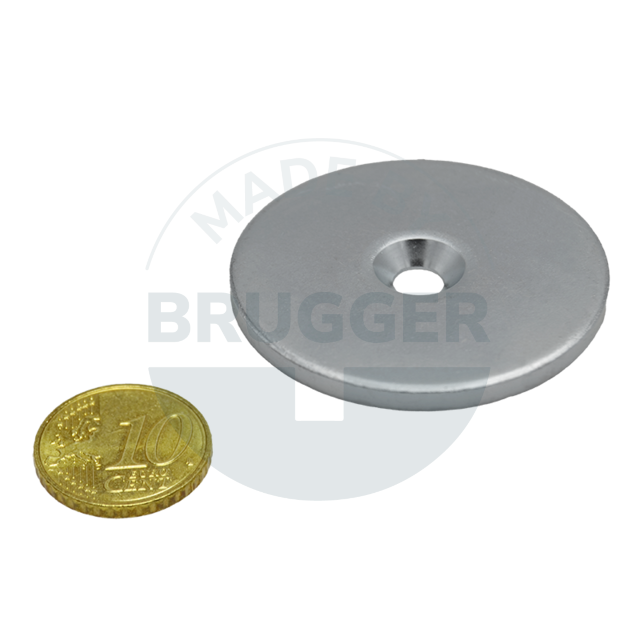

SCH-45VABS45 +0.2/-0.25,5 +1/02bright (stainless steel)24 Download CAD file
Metal disc with bore and counter bore | © Brugger GmbH
Article number: SCH-45VABS
D mm: 45 +0.2/-0.2
d mm: 5,5 +1/0
H mm: 2
Surface: bright (stainless steel)
Weight g: 24
SCH-45vBS45.3 +0.2/-0.25,5 +1/03galvanised36 Download CAD file
Metal disc with bore and counter bore | © Brugger GmbH
Article number: SCH-45vBS
D mm: 45.3 +0.2/-0.2
d mm: 5,5 +1/0
H mm: 3
Surface: galvanised
Weight g: 36
SCH-64vBS64 +0.3/-0.35,5 +1/03galvanised65 Download CAD file

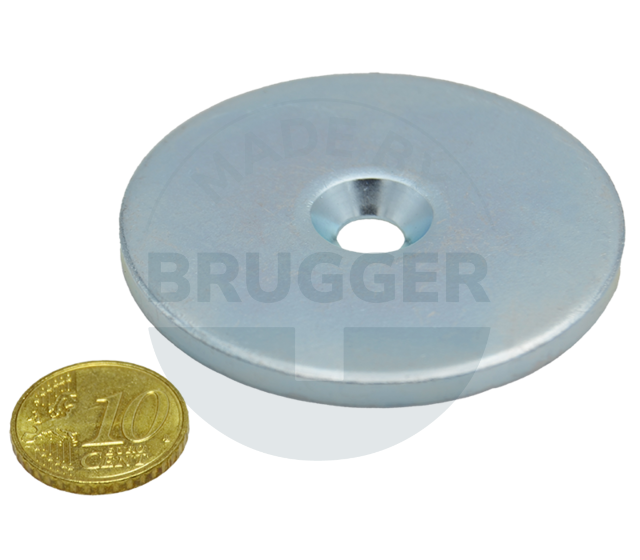

Metal disc with bore and counter bore | © Brugger GmbH
Article number: SCH-64vBS
D mm: 64 +0.3/-0.3
d mm: 5,5 +1/0
H mm: 3
Surface: galvanised
Weight g: 65
