Rubberised magnet systems

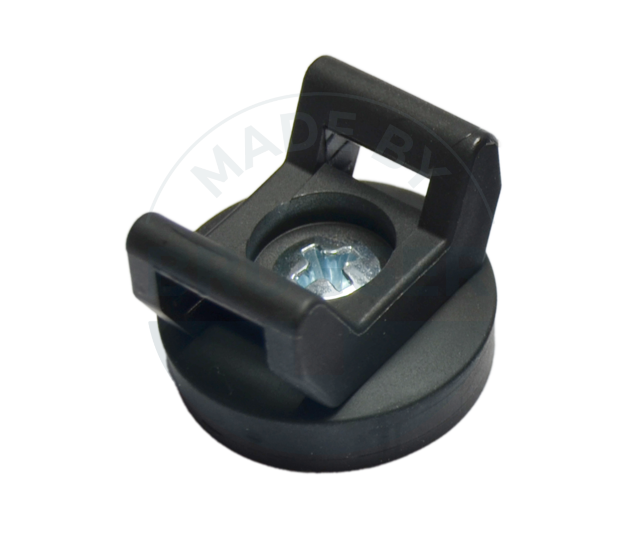

NdFeB magnetic system, black rubber sheath, for cable mounting

PRODUCT NOTE:

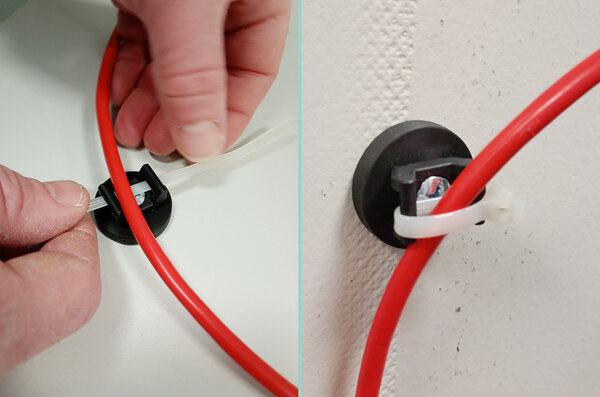

Magnetic cable holders are practical tools for quick and easy cable mounting. With a strong magnetic system made of NdFeB and a protective rubber sheath, they offer reliable fastening without the need for drill holes or adhesives. A sturdy cable holder base is screwed onto the magnetic system. The flexible holders can be attached to various surfaces and with the help of a cable tie, several cables can be held securely and tidily at the same time. Ideal for mechanical engineering, trade fair and shop fitting, industrial halls, workshops, etc. Magnetic cable holders offer an efficient and safe solution for cable routing.

Data sheet

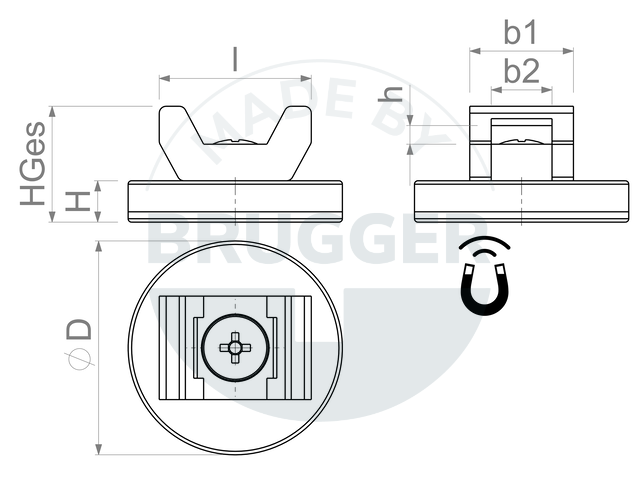

Article numberD mmH mmHGes mmh mml mmb1 mmb2 mmAdhesive force* NShear force* NWeight gTemperature °C
A18D-KsM4KaH18 6 131,515 105.1258760 Download CAD file
Rubberised magnet for cable mounting 18mm | © Brugger GmbH

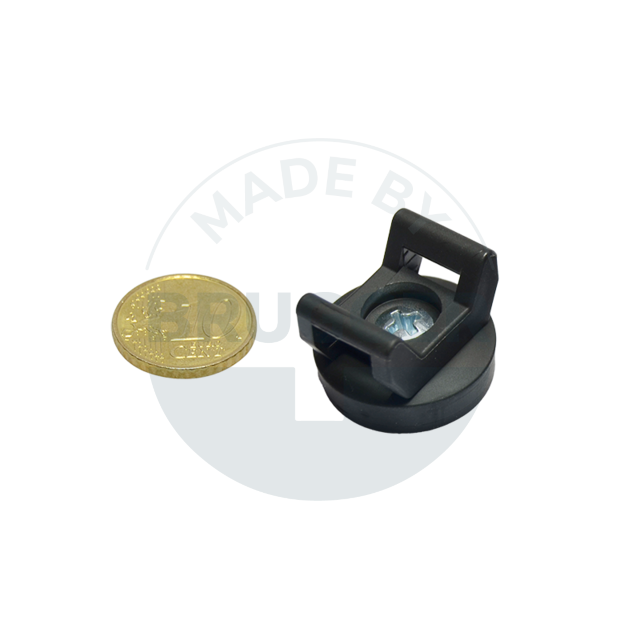

Magnetic system ø 18 mm made of NdFeB, rubber sheath, for cable mounting

Article number: A18D-KsM4KaH
D mm: 18
H mm: 6
HGes mm: 13
h mm: 1,5
l mm: 15
b1 mm: 10
b2 mm: 5.1
Adhesive force* N: 25
Shear force* N: 8
Weight g: 7
Temperature °C: 60
A22D-KsM4KaH22 6 16,82,722 158.838151260 Download CAD file
Rubberised magnet for cable mounting 22mm | © Brugger GmbH

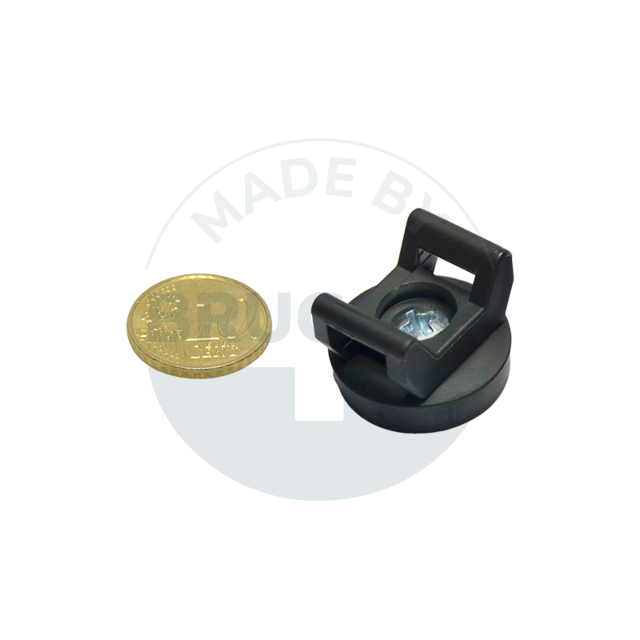

Magnetic system ø 22 mm made of NdFeB, rubber sheath, for cable mounting

Article number: A22D-KsM4KaH
D mm: 22
H mm: 6
HGes mm: 16,8
h mm: 2,7
l mm: 22
b1 mm: 15
b2 mm: 8.8
Adhesive force* N: 38
Shear force* N: 15
Weight g: 12
Temperature °C: 60
AS031NdSo00s-0731 6 16,82,722 158.889192660 Download CAD file
Rubberised magnet for cable mounting | © Brugger GmbH

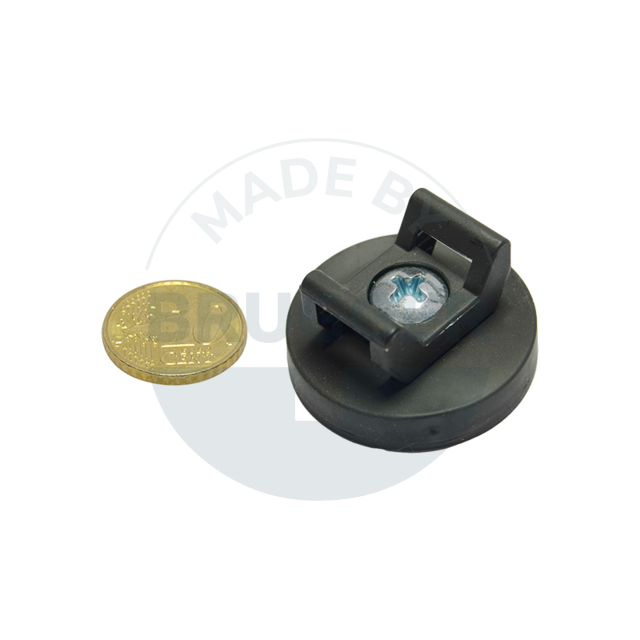

Magnetic system ø 31 mm made of NdFeB, rubber sheath, for cable mounting

Article number: AS031NdSo00s-07
D mm: 31
H mm: 6
HGes mm: 16,8
h mm: 2,7
l mm: 22
b1 mm: 15
b2 mm: 8.8
Adhesive force* N: 89
Shear force* N: 19
Weight g: 26
Temperature °C: 60
A43D-KsM4KaH43 6 16,82,722 168.8100383060 Download CAD file

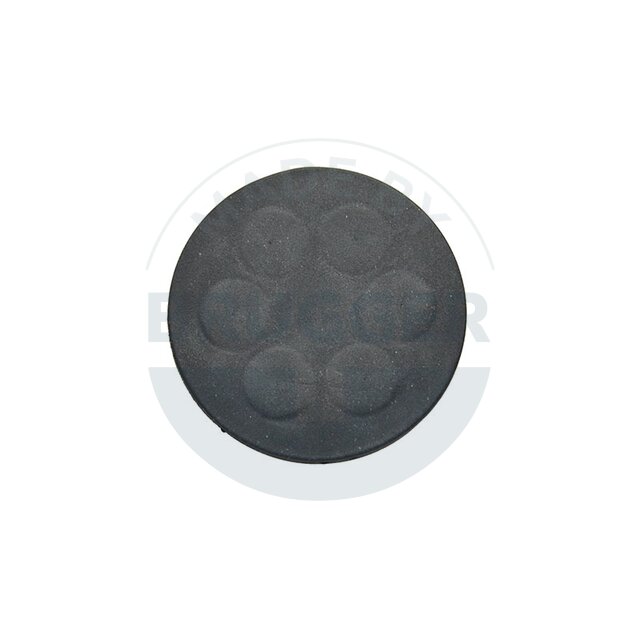

Rubberised magnet for cable mounting 43mm | © Brugger GmbH

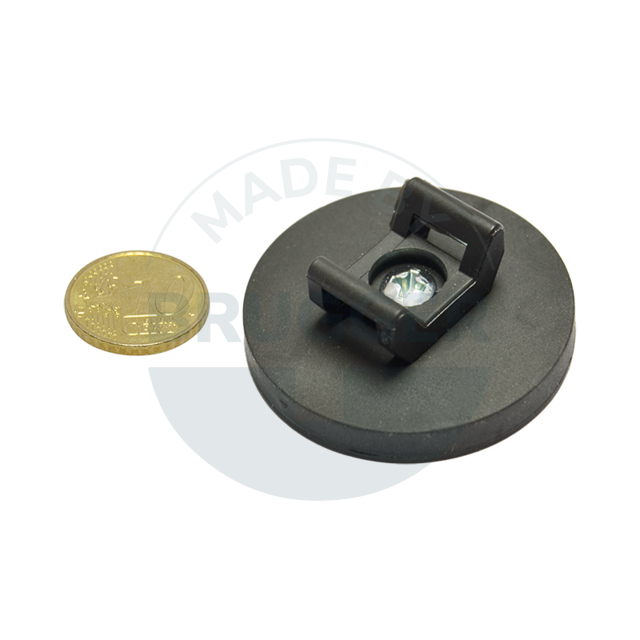

Magnetic system ø 43 mm made of NdFeB, rubber sheath, for cable mounting

Article number: A43D-KsM4KaH
D mm: 43
H mm: 6
HGes mm: 16,8
h mm: 2,7
l mm: 22
b1 mm: 16
b2 mm: 8.8
Adhesive force* N: 100
Shear force* N: 38
Weight g: 30
Temperature °C: 60

* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
