Rubberised magnet systems

NdFeB magnetic system, black rubber sheath, with external thread, rectangular

PRODUCT INFORMATION:
A clever combination of technology and functionality is behind our black magnetic systems with rubber coating. Strong neodymium magnets in combination with an integrated metal element generate a deep-acting magnetic field that can bridge even larger gaps. At the same time, the metal element shields the rear of the system, preventing unnecessary magnetic attraction.

The TPE rubber coating of our magnetic systems offers you several advantages: it protects your surfaces from scratches and discolouration, increases the displacement forces and ensures greater corrosion resistance. It also has a noise-insulating effect when the magnetic systems are fitted, ensuring a pleasant installation experience. This SQUARELINE system is equipped with one or two sturdy threaded studs.

As an alternative to the standard version, we also offer customised solutions:
" Other colours for the rubber coating
" Harder or softer rubber coating
" Higher adhesive force

Data sheet
Article numberL mmB mmH mmHGes mmThread MxLA mmAdhesive force* NShear force* NWeight gTemp. °C
AS035NdAG04s-0035 +0.2/-0.222,5 +0.2/-0.26 +0.2/-0.2121xM4x693362180 Download CAD file

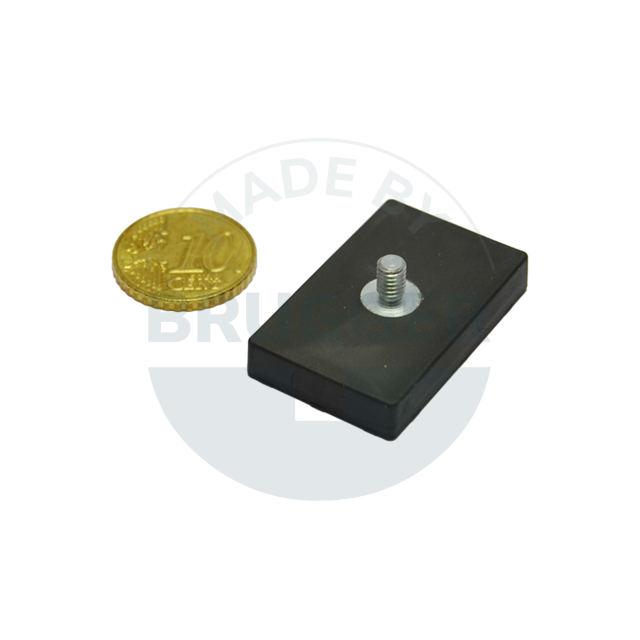

Rubberised magnet systems rectangular black with external thread M4 | © Brugger GmbH
Article number: AS035NdAG04s-00
L mm: 35 +0.2/-0.2
B mm: 22,5 +0.2/-0.2
H mm: 6 +0.2/-0.2
HGes mm: 12
Thread MxL: 1xM4x6
Adhesive force* N: 93
Shear force* N: 36
Weight g: 21
Temp. °C: 80
AS035NdAG04s-0135 +0.2/-0.222,5 +0.2/-0.26 +0.2/-0.2122xM4x61793362280 Download CAD file

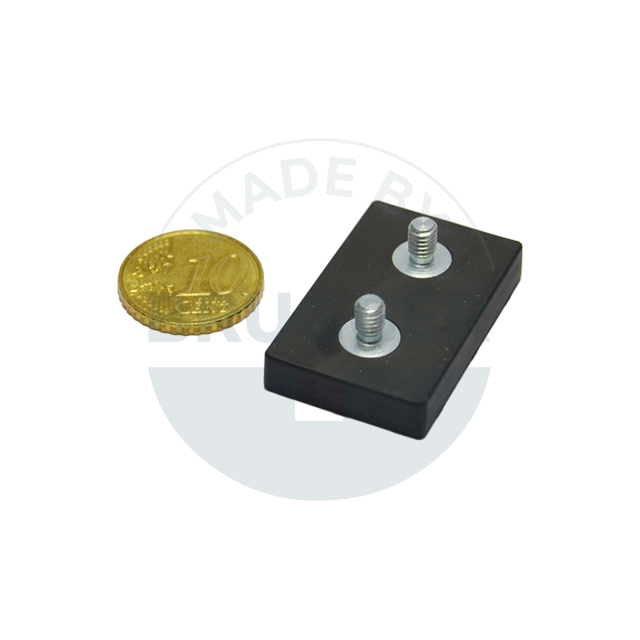

Rubberised magnet systems rectangular black with 2x external thread M4 | © Brugger GmbH
Article number: AS035NdAG04s-01
L mm: 35 +0.2/-0.2
B mm: 22,5 +0.2/-0.2
H mm: 6 +0.2/-0.2
HGes mm: 12
Thread MxL: 2xM4x6
A mm: 17
Adhesive force* N: 93
Shear force* N: 36
Weight g: 22
Temp. °C: 80

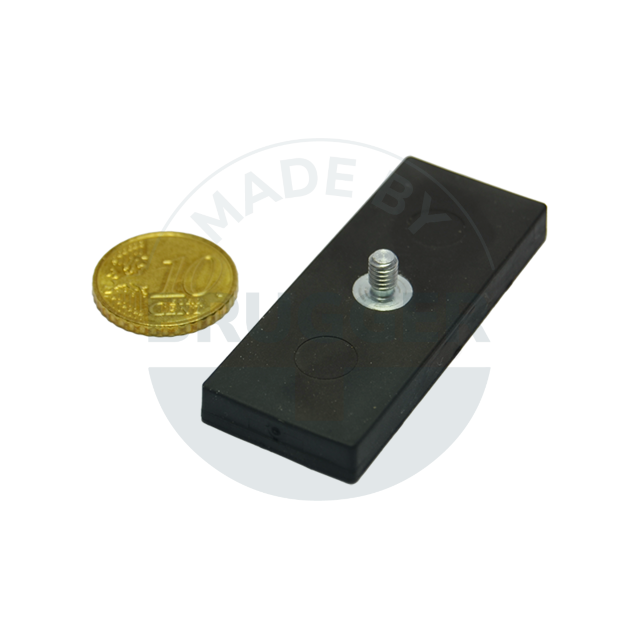

AS055NdAG04s-0055 +0.2/-0.222,5 +0.2/-0.26 +0.2/-0.2121xM4x6140503180 Download CAD file
Rubberised magnet systems rectangular black with external thread M4 | © Brugger GmbH
Article number: AS055NdAG04s-00
L mm: 55 +0.2/-0.2
B mm: 22,5 +0.2/-0.2
H mm: 6 +0.2/-0.2
HGes mm: 12
Thread MxL: 1xM4x6
Adhesive force* N: 140
Shear force* N: 50
Weight g: 31
Temp. °C: 80

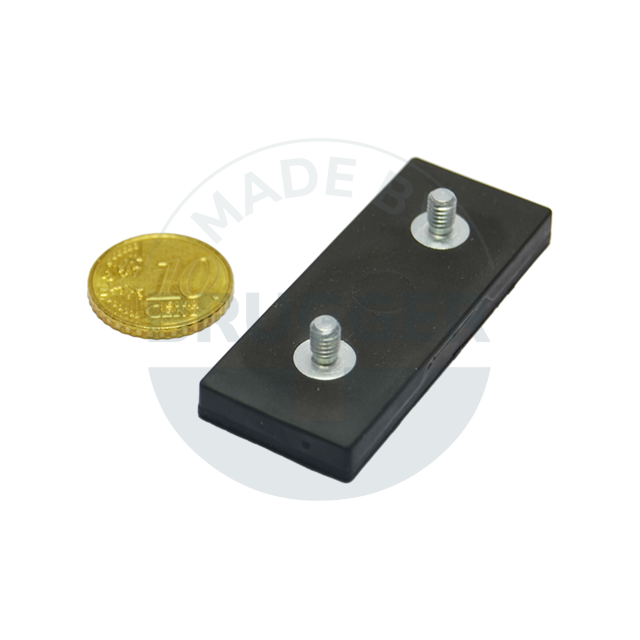

AS055NdAG04s-0155 +0.2/-0.222,5 +0.2/-0.26 +0.2/-0.2122xM4x630140503280 Download CAD file
Rubberised magnet systems rectangular black with 2x external thread M4 | © Brugger GmbH
Article number: AS055NdAG04s-01
L mm: 55 +0.2/-0.2
B mm: 22,5 +0.2/-0.2
H mm: 6 +0.2/-0.2
HGes mm: 12
Thread MxL: 2xM4x6
A mm: 30
Adhesive force* N: 140
Shear force* N: 50
Weight g: 32
Temp. °C: 80

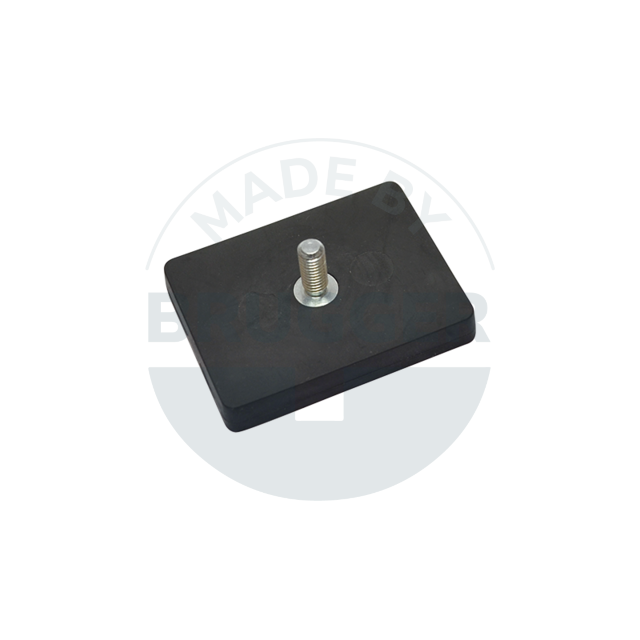

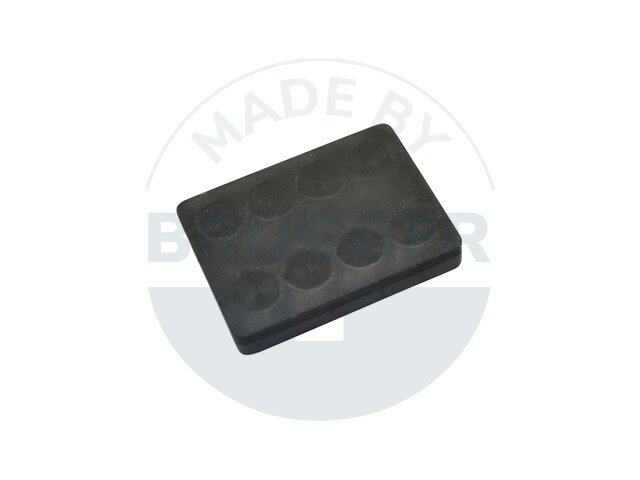

AS059NdAG06s-0059 +0.3/-0.345 +0.3/-0.38,5 +0.2/-0.223,51xM6x15240908680 Download CAD file

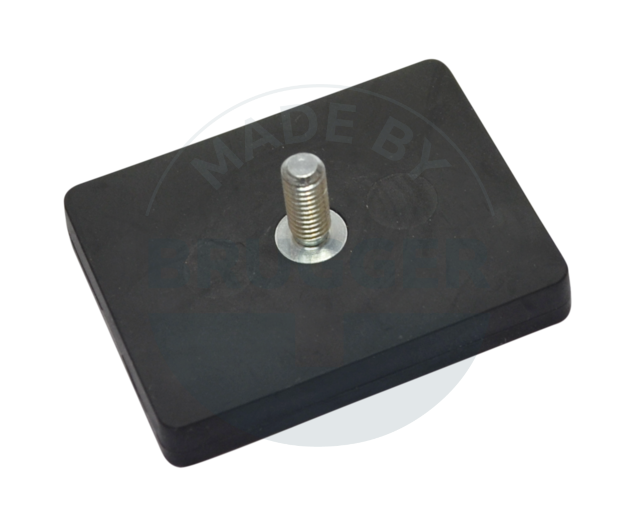

Rubberised magnet systems rectangular black with external thread M6 | © Brugger GmbH
Article number: AS059NdAG06s-00
L mm: 59 +0.3/-0.3
B mm: 45 +0.3/-0.3
H mm: 8,5 +0.2/-0.2
HGes mm: 23,5
Thread MxL: 1xM6x15
Adhesive force* N: 240
Shear force* N: 90
Weight g: 86
Temp. °C: 80

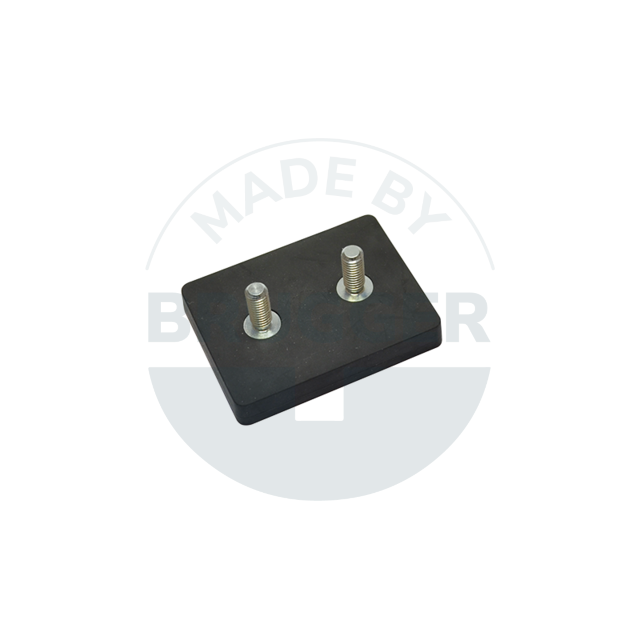

AS059NdAG06s-0159 +0.3/-0.345 +0.3/-0.38,5 +0.2/-0.223,52xM6x1527240909180 Download CAD file
Rubberised magnet systems rectangular black with 2x external thread M6 | © Brugger GmbH
Article number: AS059NdAG06s-01
L mm: 59 +0.3/-0.3
B mm: 45 +0.3/-0.3
H mm: 8,5 +0.2/-0.2
HGes mm: 23,5
Thread MxL: 2xM6x15
A mm: 27
Adhesive force* N: 240
Shear force* N: 90
Weight g: 91
Temp. °C: 80

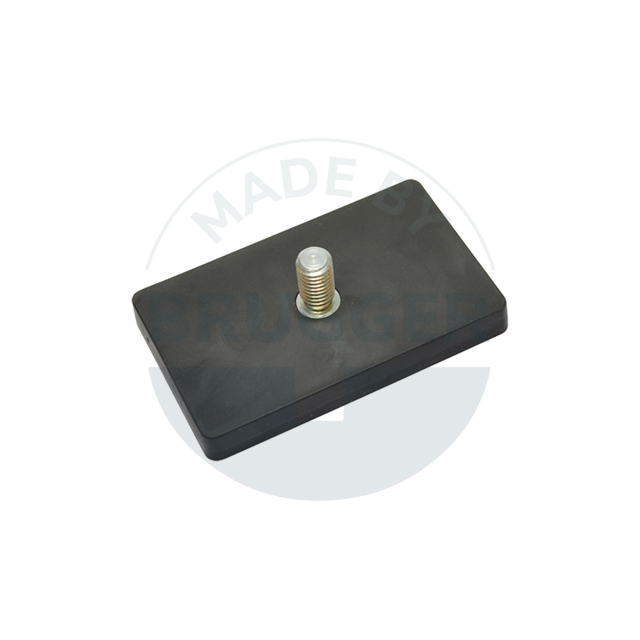

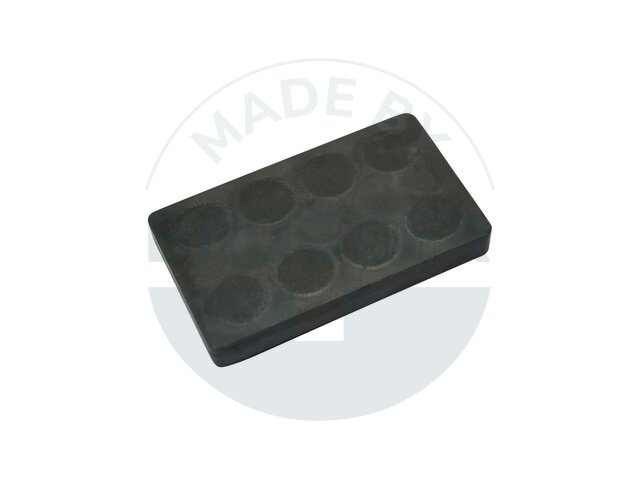

AS074NdAG08s-0074 +0.3/-0.345 +0.3/-0.38,5 +0.2/-0.223,51xM8x1536013011180 Download CAD file
Rubberised magnet systems rectangular black with external thread M8 | © Brugger GmbH
Article number: AS074NdAG08s-00
L mm: 74 +0.3/-0.3
B mm: 45 +0.3/-0.3
H mm: 8,5 +0.2/-0.2
HGes mm: 23,5
Thread MxL: 1xM8x15
Adhesive force* N: 360
Shear force* N: 130
Weight g: 111
Temp. °C: 80

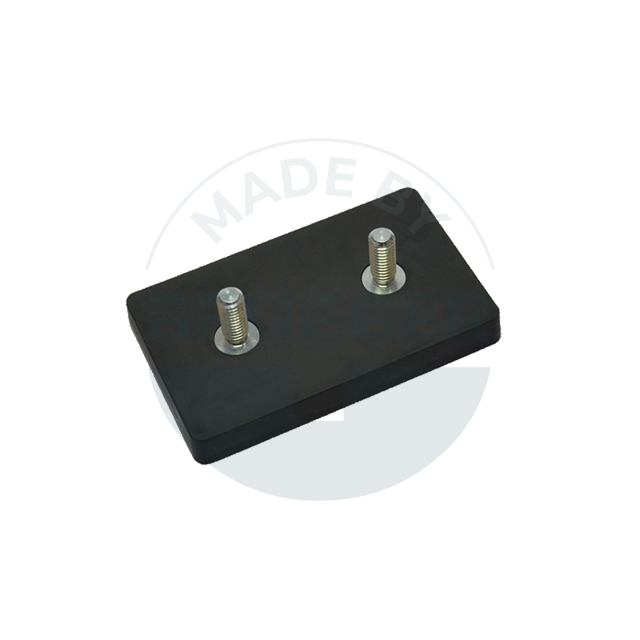

AS074NdAG06s-0174 +0.3/-0.345 +0.3/-0.38,5 +0.2/-0.223,52xM6x153636013011480 Download CAD file

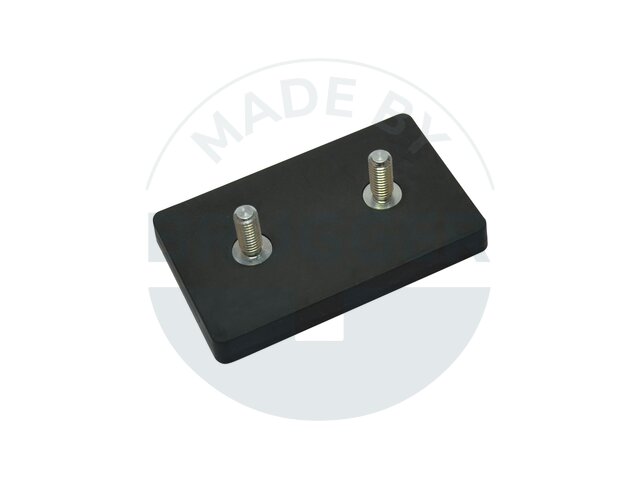

Rubberised magnet systems rectangular black with 2x external thread M6 | © Brugger GmbH
Article number: AS074NdAG06s-01
L mm: 74 +0.3/-0.3
B mm: 45 +0.3/-0.3
H mm: 8,5 +0.2/-0.2
HGes mm: 23,5
Thread MxL: 2xM6x15
A mm: 36
Adhesive force* N: 360
Shear force* N: 130
Weight g: 114
Temp. °C: 80
AS075NdAG04s-0075 +0.3/-0.322,5 +0.2/-0.26 +0.2/-0.2121xM4x6205754480 Download CAD file

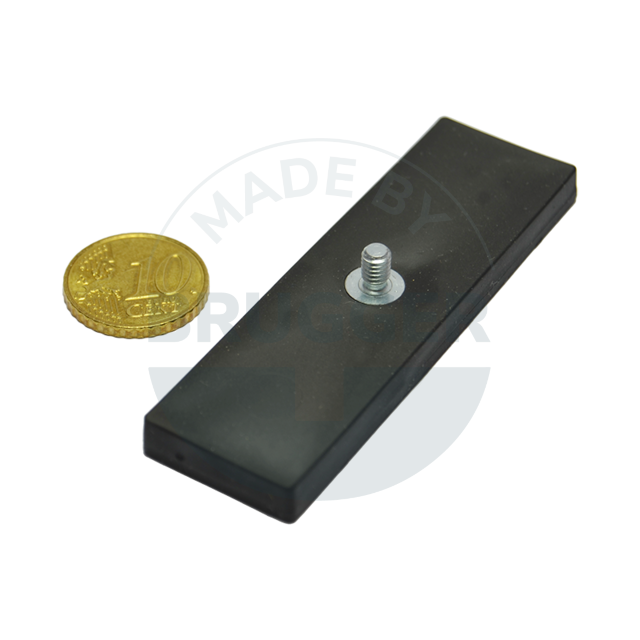

Rubberised magnet systems rectangular black with external thread M4 | © Brugger GmbH
Article number: AS075NdAG04s-00
L mm: 75 +0.3/-0.3
B mm: 22,5 +0.2/-0.2
H mm: 6 +0.2/-0.2
HGes mm: 12
Thread MxL: 1xM4x6
Adhesive force* N: 205
Shear force* N: 75
Weight g: 44
Temp. °C: 80

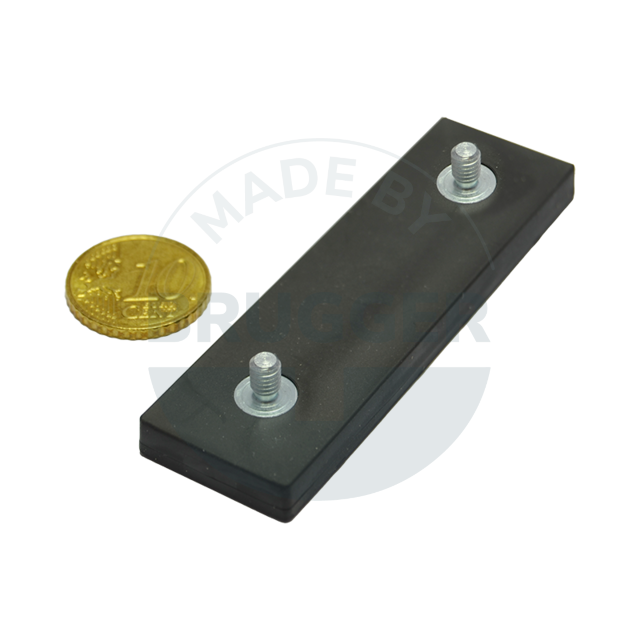

AS075NdAG04s-0175 +0.3/-0.322,5 +0.2/-0.26 +0.2/-0.2122xM4x650205754580 Download CAD file
Rubberised magnet systems rectangular black with 2x external thread M4 | © Brugger GmbH
Article number: AS075NdAG04s-01
L mm: 75 +0.3/-0.3
B mm: 22,5 +0.2/-0.2
H mm: 6 +0.2/-0.2
HGes mm: 12
Thread MxL: 2xM4x6
A mm: 50
Adhesive force* N: 205
Shear force* N: 75
Weight g: 45
Temp. °C: 80

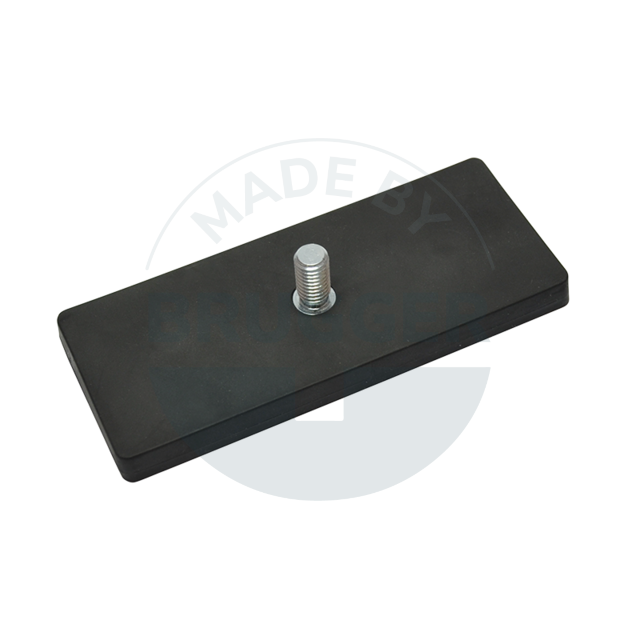

AS110NdAG08s-00 110 +0.3/-0.345 +0.3/-0.38,5 +0.2/-0.223,51xM8x1553018016380 Download CAD file
Rubberised magnet systems rectangular black with external thread M8 | © Brugger GmbH
Article number: AS110NdAG08s-00
L mm: 110 +0.3/-0.3
B mm: 45 +0.3/-0.3
H mm: 8,5 +0.2/-0.2
HGes mm: 23,5
Thread MxL: 1xM8x15
Adhesive force* N: 530
Shear force* N: 180
Weight g: 163
Temp. °C: 80
AS110NdAG06s-01110 +0.3/-0.345 +0.3/-0.38,5 +0.2/-0.223,52xM6x156853018016880 Download CAD file

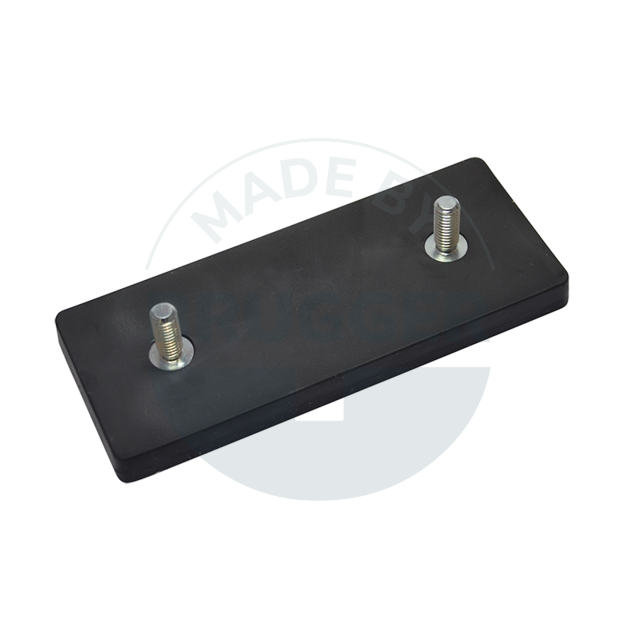

Rubberised magnet systems rectangular black with 2x external thread M6 | © Brugger GmbH
Article number: AS110NdAG06s-01
L mm: 110 +0.3/-0.3
B mm: 45 +0.3/-0.3
H mm: 8,5 +0.2/-0.2
HGes mm: 23,5
Thread MxL: 2xM6x15
A mm: 68
Adhesive force* N: 530
Shear force* N: 180
Weight g: 168
Temp. °C: 80

* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
