Rubberised magnet systems

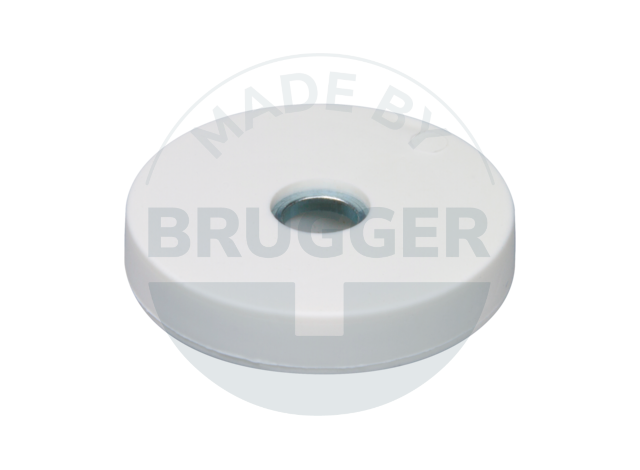

NdFeB magnetic system, white rubber sheath, with cylinder bore

PRODUCT NOTE:
Thanks to their rubber coating, these magnetic systems are perfect for use on sensitive surfaces. They protect the surface from scratches and, thanks to the light-coloured coating, from colour transfer and at the same time increase the frictional force in the event of displacement. This magnetic system with a cylinder bore is mounted by screwing it on with a screw without countersinking.

As an alternative to the standard version, we also offer customised solutions:
" Other colours for the rubber coating
" Harder or softer rubber coating

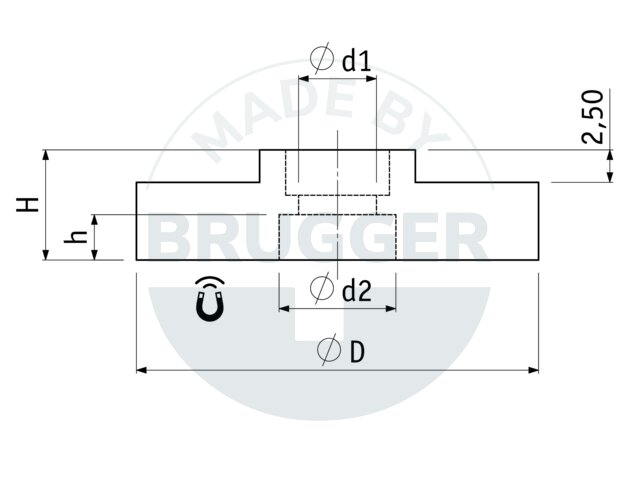

Data sheet

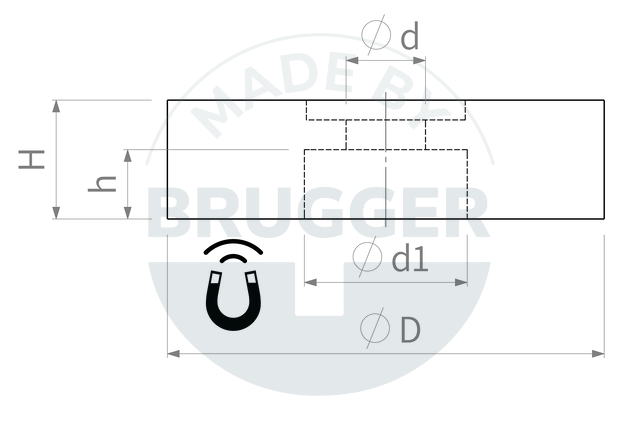

Article numberD mmd mmd1 mmH mmh mmAdhesive force* NShear force* NWeight gTemperature °CSurface
A18C-KwB3.0H618 38.26 3,52575.560white Download CAD file
Rubberised magnet with cylinder bore 18mm | © Brugger GmbH

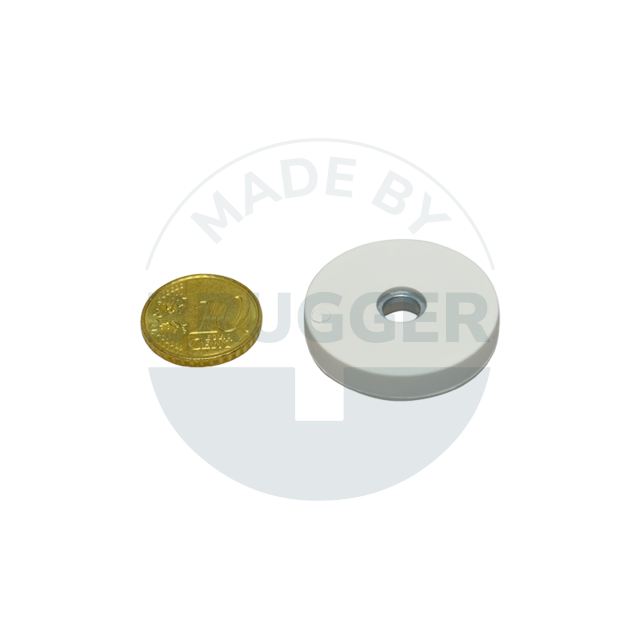

Magnetic system ø 18 mm made of NdFeB, rubber sheath white, with cylinder bore

Article number: A18C-KwB3.0H6
D mm: 18
d mm: 3
d1 mm: 8.2
H mm: 6
h mm: 3,5
Adhesive force* N: 25
Shear force* N: 7
Weight g: 5.5
Temperature °C: 60
Surface: white
A22C-KwB4.0H622 48.26 3,53812860white Download CAD file
Rubberised magnet with cylinder bore 22mm | © Brugger GmbH

Magnetic system ø 22 mm made of NdFeB, rubber sheath white, with cylinder bore

Article number: A22C-KwB4.0H6
D mm: 22
d mm: 4
d1 mm: 8.2
H mm: 6
h mm: 3,5
Adhesive force* N: 38
Shear force* N: 12
Weight g: 8
Temperature °C: 60
Surface: white
A31C-KwB6.0H631 696 3,589152060white Download CAD file
Rubberised magnet with cylinder bore 31mm | © Brugger GmbH

Magnetic system ø 31 mm made of NdFeB, rubber sheath white, with cylinder bore

Article number: A31C-KwB6.0H6
D mm: 31
d mm: 6
d1 mm: 9
H mm: 6
h mm: 3,5
Adhesive force* N: 89
Shear force* N: 15
Weight g: 20
Temperature °C: 60
Surface: white
A31C-KwB6.0H831 698,5 3,589152060white Download CAD file
Rubberised magnet with cylinder bore 31mm | © Brugger GmbH

Magnetic system ø 31 mm made of NdFeB, rubber sheath white, with cylinder bore

Article number: A31C-KwB6.0H8
D mm: 31
d mm: 6
d1 mm: 9
H mm: 8,5
h mm: 3,5
Adhesive force* N: 89
Shear force* N: 15
Weight g: 20
Temperature °C: 60
Surface: white
A57C-KwB8.0H7.657 8257,6 3,3200687760white Download CAD file
Rubberised magnet with cylinder bore 57mm | © Brugger GmbH

Magnetic system ø 57 mm made of NdFeB, white rubber sheath, with cylinder bore

Article number: A57C-KwB8.0H7.6
D mm: 57
d mm: 8
d1 mm: 25
H mm: 7,6
h mm: 3,3
Adhesive force* N: 200
Shear force* N: 68
Weight g: 77
Temperature °C: 60
Surface: white
A66C-KwB5.5H8.566 5.5228,5 3,22507510080white Download CAD file
Rubberised magnet with cylinder bore 66mm | © Brugger GmbH

Magnetic system ø 66 mm made of NdFeB, white rubber sheath, with cylinder bore

Article number: A66C-KwB5.5H8.5
D mm: 66
d mm: 5.5
d1 mm: 22
H mm: 8,5
h mm: 3,2
Adhesive force* N: 250
Shear force* N: 75
Weight g: 100
Temperature °C: 80
Surface: white
