NdFeB magnetic system, white rubber sheath, with external thread
PRODUCT INFORMATION:
Equipped with a protective white rubber coating, these magnetic systems are particularly suitable for use on sensitive surfaces. The rubber coating prevents damage such as scratches or discolouration and also ensures improved static friction. Depending on the diameter, this magnetic system is equipped with threaded studs in different sizes. This means that these magnet systems can be easily screwed onto objects with a suitable metric thread.
As an alternative to the standard version, we also offer customised solutions: " Other colours for the rubber coating " Harder or softer rubber coating

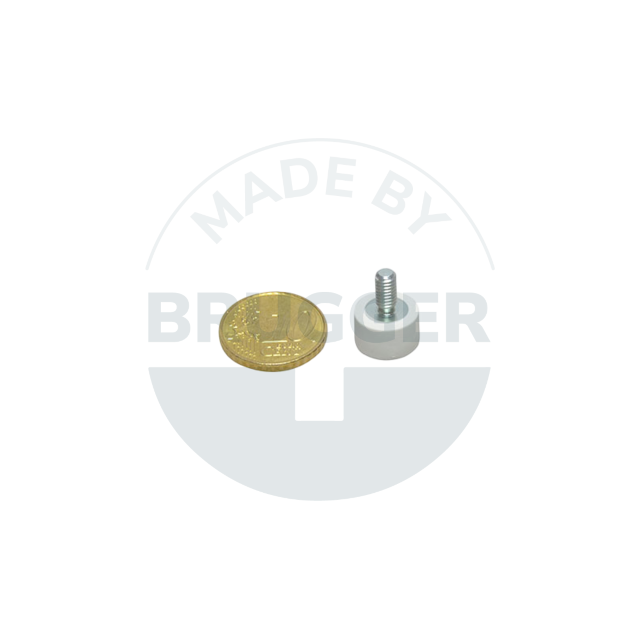

Magnetic system ø 12mm made of NdFeB, rubber sheath white, with external thread
Article number:
A12AG-KwM4x8
D mm:
12
H mm:
7
HGes mm:
15,5
Thread M:
M4x8
Adhesive force* N:
13
Shear force* N:
4
Weight g:
4.5
Temperature °C:
60
Surface:
white
A18AG-KwM4x6
18
6
12
M4x6
37
11
7.6
60
white

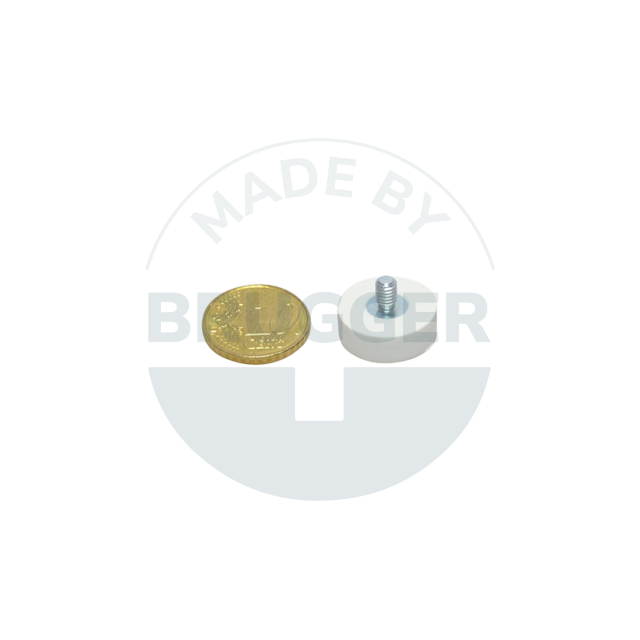

Magnetic system ø 18mm made of NdFeB, rubber sheath white, with external thread
Article number:
A18AG-KwM4x6
D mm:
18
H mm:
6
HGes mm:
12
Thread M:
M4x6
Adhesive force* N:
37
Shear force* N:
11
Weight g:
7.6
Temperature °C:
60
Surface:
white
A22AG-KwM4x6
22
6
12,5
M4x6.5
58
15
11
60
white

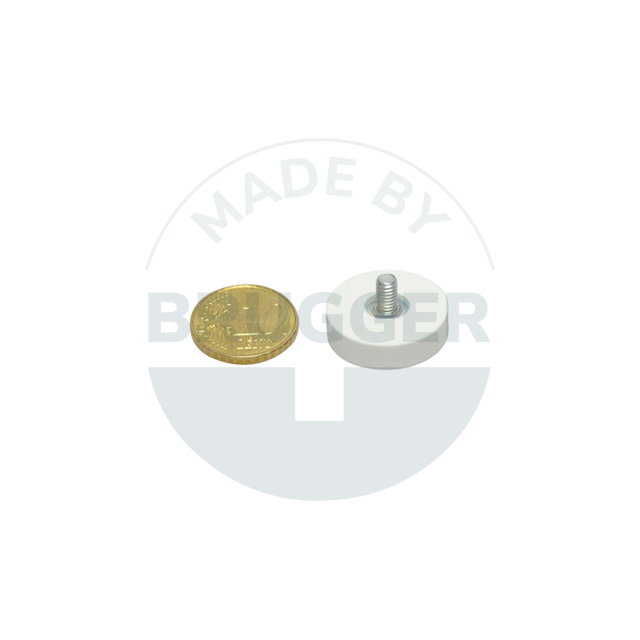

Magnetic system ø 22 mm made of NdFeB, rubber sheath white, with external thread
Article number:
A22AG-KwM4x6
D mm:
22
H mm:
6
HGes mm:
12,5
Thread M:
M4x6.5
Adhesive force* N:
58
Shear force* N:
15
Weight g:
11
Temperature °C:
60
Surface:
white
AS031NdAG06w-01
31
6
17
M6x11
89
29
24
60
white

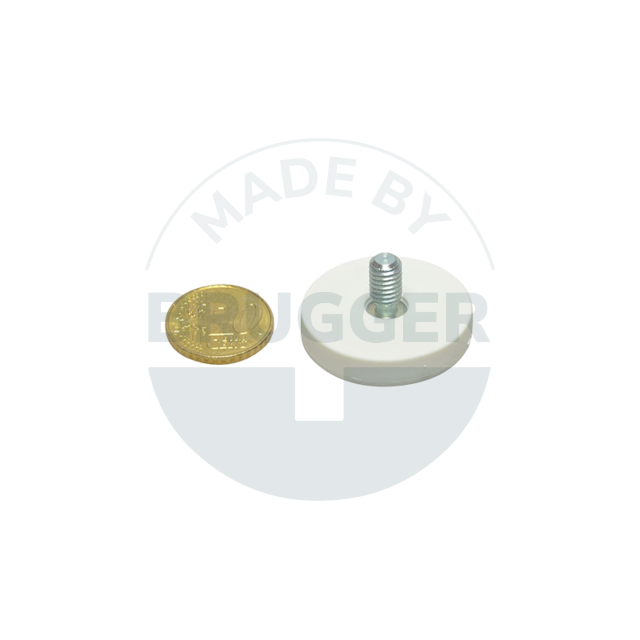

Magnetic system ø 31 mm made of NdFeB, rubber sheath white, with external thread
Article number:
AS031NdAG06w-01
D mm:
31
H mm:
6
HGes mm:
17
Thread M:
M6x11
Adhesive force* N:
89
Shear force* N:
29
Weight g:
24
Temperature °C:
60
Surface:
white
A43AG-KwM4x6
43
6
12
M4x6
100
25
30
60
white
Magnetic system ø 43 mm made of NdFeB, white rubber sheath, with external thread
Article number:
A43AG-KwM4x6
D mm:
43
H mm:
6
HGes mm:
12
Thread M:
M4x6
Adhesive force* N:
100
Shear force* N:
25
Weight g:
30
Temperature °C:
60
Surface:
white
A43AG-KwM6x15T
43
6
21
M6x15
100
25
32
80
white
Article number:
A43AG-KwM6x15T
D mm:
43
H mm:
6
HGes mm:
21
Thread M:
M6x15
Adhesive force* N:
100
Shear force* N:
25
Weight g:
32
Temperature °C:
80
Surface:
white
A57AG-KwM6x15
57
7,6
22,6
M6x15
200
78
77
60
white
Magnetic system ø 57 mm made of NdFeB, white rubber sheath, with external thread
Article number:
A57AG-KwM6x15
D mm:
57
H mm:
7,6
HGes mm:
22,6
Thread M:
M6x15
Adhesive force* N:
200
Shear force* N:
78
Weight g:
77
Temperature °C:
60
Surface:
white
A66AG-KwM8x15
66
8,5
23,5
M8x15
250
75
107
80
white
Magnetic system ø 66 mm made of NdFeB, white rubber sheath, with external thread
Article number:
A66AG-KwM8x15
D mm:
66
H mm:
8,5
HGes mm:
23,5
Thread M:
M8x15
Adhesive force* N:
250
Shear force* N:
75
Weight g:
107
Temperature °C:
80
Surface:
white
A88AG-KwM8x15
88
8,5
23,5
M8x15
550
125
193
80
white
Magnetic system ø 88 mm made of NdFeB, white rubber sheath, with external thread
Article number:
A88AG-KwM8x15
D mm:
88
H mm:
8,5
HGes mm:
23,5
Thread M:
M8x15
Adhesive force* N:
550
Shear force* N:
125
Weight g:
193
Temperature °C:
80
Surface:
white
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
