NdFeB magnetic system, white rubber sheath, with threaded bushing, rectangular
PRODUCT INFORMATION:
Our rubber-coated magnet systems are true all-rounders. Thanks to the special rubber coating (thermoplastic elastomer), they are perfect for applications on sensitive surfaces, such as paintwork or sensitive plastics. The white rubber coating protects against scratches and discolouration, while the strong magnetic force is guaranteed by the use of neodymium magnets. This SQUARELINE variant is available with one or two threaded bushings.
Our magnetic systems are equipped with a special TPE rubber coating that reliably protects your surfaces. No scratches, no discolouration - thanks to this innovative rubber coating, you can use our systems on sensitive materials such as painted surfaces or thin sheet metal with complete peace of mind. The rubber coating also ensures noise-reduced installation, so you won't experience any annoying noises when you attach your magnetic systems. This rectangular magnetic system is equipped with one or two threaded bushings.
As an alternative to the standard version, we also offer customised solutions: " Other colours for the rubber coating " Harder or softer rubber coating " Higher adhesive force

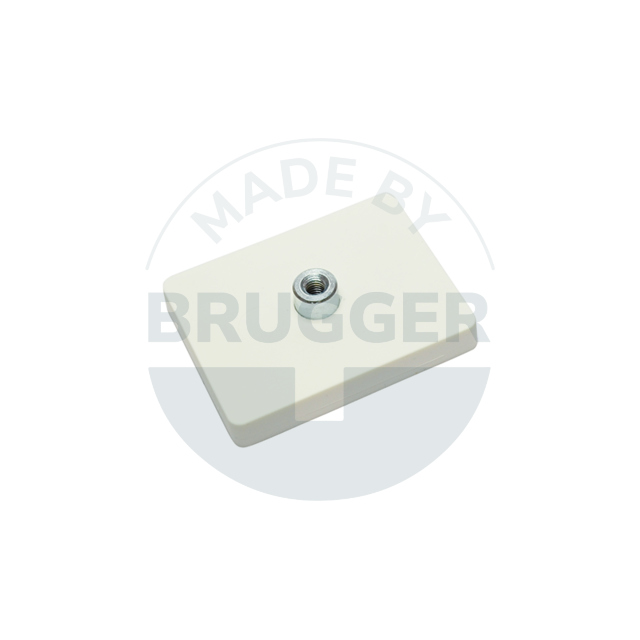

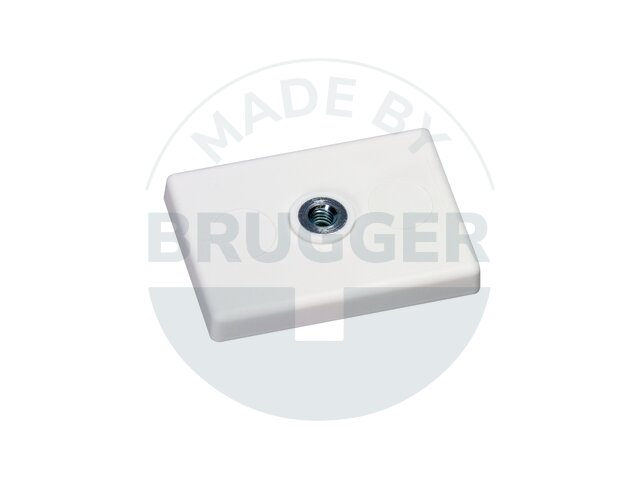

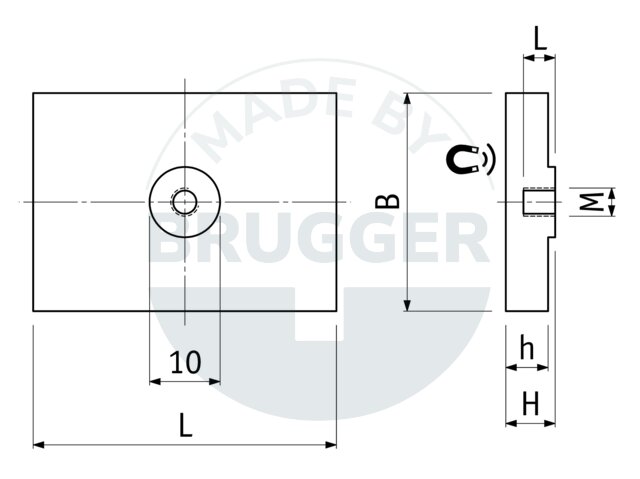

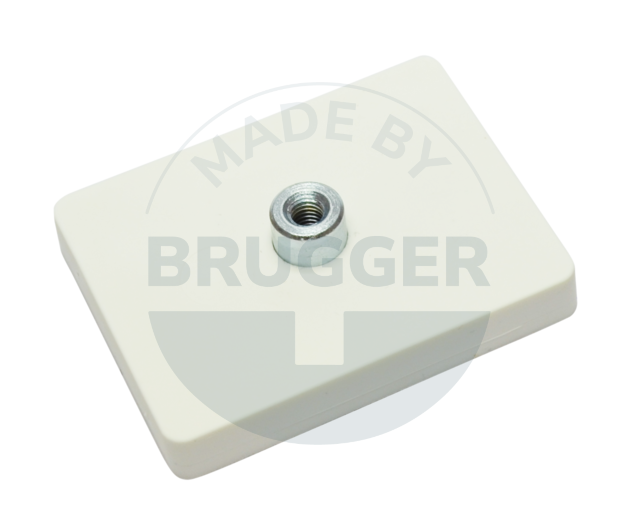

Magnetic system 43x31x6.9mm made of NdFeB, white rubber sheath, with internal thread, rectangular
Article number:
A43x31A-KwM4
L mm:
43 +0.3/-0.3
B mm:
31 +0.3/-0.3
H mm:
6 +0.2/-0.2
HGes mm:
6,9
Thread MxL:
M4x4.5
Adhesive force* N:
105
Shear force* N:
33
Weight g:
27
Temp. °C:
60
A43x31A-Kw2GBM4
43 +0.3/-0.3
31 +0.3/-0.3
6 +0.2/-0.2
6,9
M4x4.5
146
47
28
60

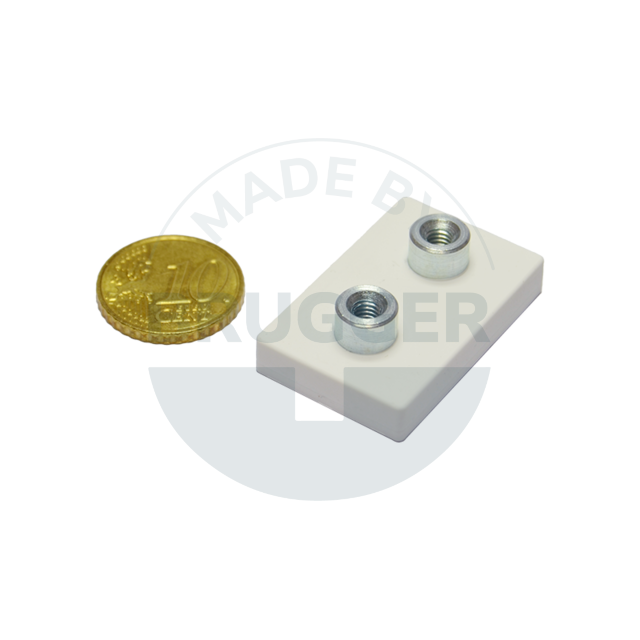

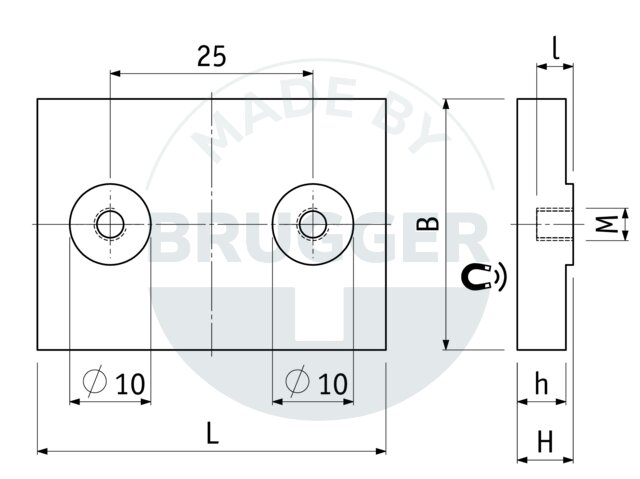

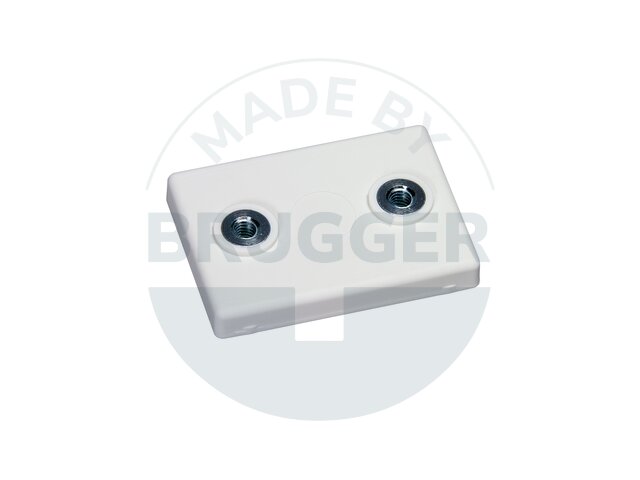

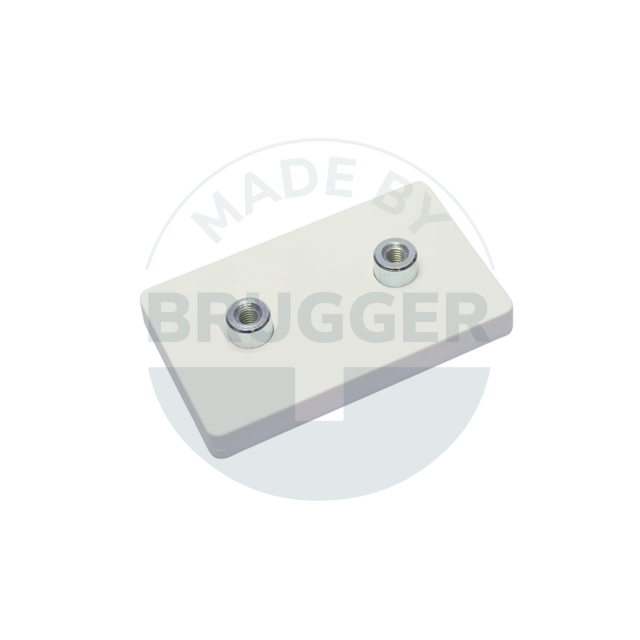

Magnetic system 43x31x6.9mm made of NdFeB, white rubber sheath, with 2x internal thread, rectangular
Article number:
A43x31A-Kw2GBM4
L mm:
43 +0.3/-0.3
B mm:
31 +0.3/-0.3
H mm:
6 +0.2/-0.2
HGes mm:
6,9
Thread MxL:
M4x4.5
Adhesive force* N:
146
Shear force* N:
47
Weight g:
28
Temp. °C:
60
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
