Flat pot magnets of Neodymium-iron-boron (NdFeB)

Pot magnets made of NdFeB, stainless steel housing, with internal thread, rubberised holding surface

PRODUCT INFORMATION:

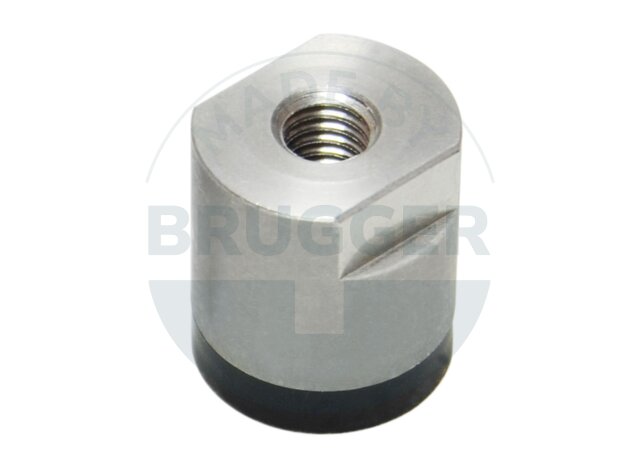

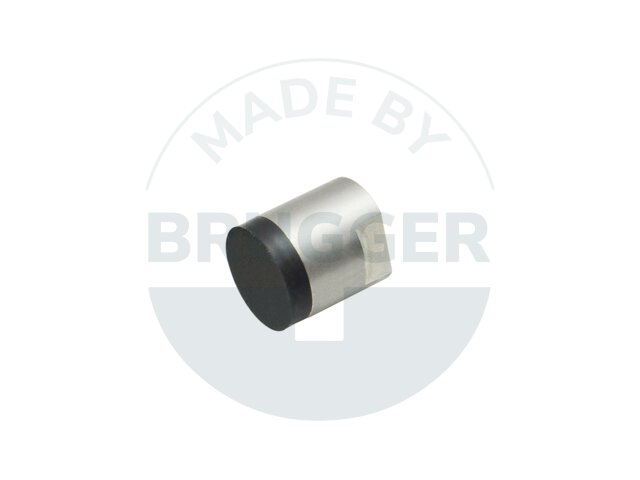

Magnetic system with stainless steel housing, an internal thread and a strong neodymium magnetic core. The depth effect of the magnetic field is greater with this series than with the classic flat gripper systems. Two milled surfaces on the circumference ensure that the magnetic system can be firmly screwed on with a tool. The holding surface is moulded with a hard rubber (TPE) and protects the magnet from impacts. At the same time, the rubber layer has a noise-damping effect.

Data sheet

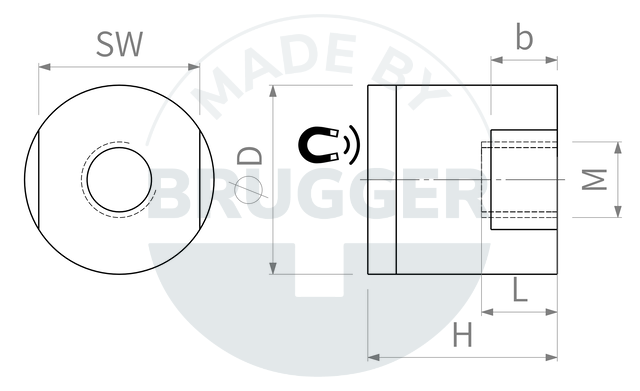

Article numberD mmH mmThread MxLSW mmb mmAdhesive force* NWeight gTemperature °C
FG010NdA-04rh00 10 +0.2/-0.214 +0.2/-0.2M4x4849.56.180 Download CAD file

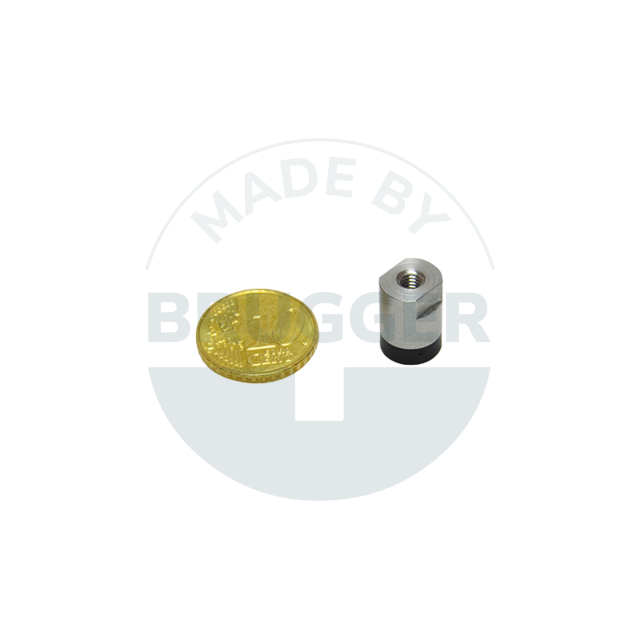

Pot magnet of NdFeB stainless steel housing with internal thread rubberised holding surface 10mm M4 | © Brugger GmbH

Topfmagnete ø10mm aus NdFeB, Edelstahlgehäuse, mit Innengewinde, Haftfläche gummiert

Article number: FG010NdA-04rh00
D mm: 10 +0.2/-0.2
H mm: 14 +0.2/-0.2
Thread MxL: M4x4
SW mm: 8
b mm: 4
Adhesive force* N: 9.5
Weight g: 6.1
Temperature °C: 80
FG013NdA-06rh0013 +0.2/-0.216 +0.2/-0.2M6x6114151280 Download CAD file

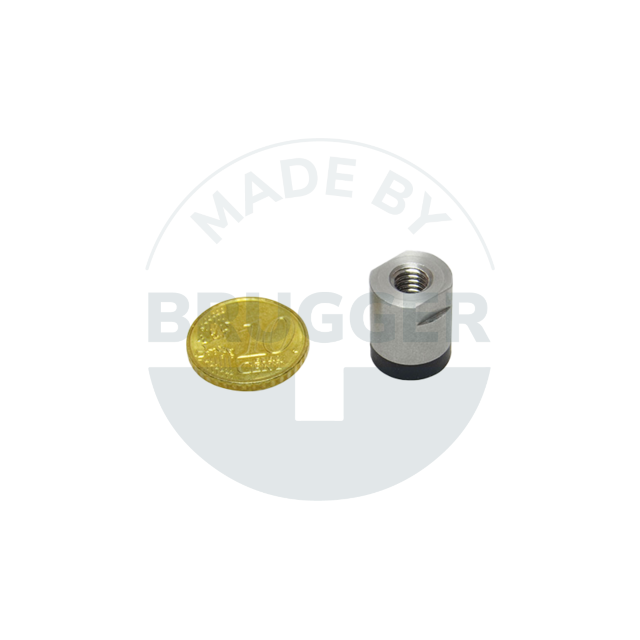

Pot magnet of NdFeB stainless steel housing with internal thread rubberised holding surface 13mm M6 | © Brugger GmbH

Topfmagnete ø13mm aus NdFeB, Edelstahlgehäuse, mit Innengewinde, Haftfläche gummiert

Article number: FG013NdA-06rh00
D mm: 13 +0.2/-0.2
H mm: 16 +0.2/-0.2
Thread MxL: M6x6
SW mm: 11
b mm: 4
Adhesive force* N: 15
Weight g: 12
Temperature °C: 80
FG016NdA-06rh0016 +0.2/-0.218 +0.2/-0.2M6x8135232280 Download CAD file

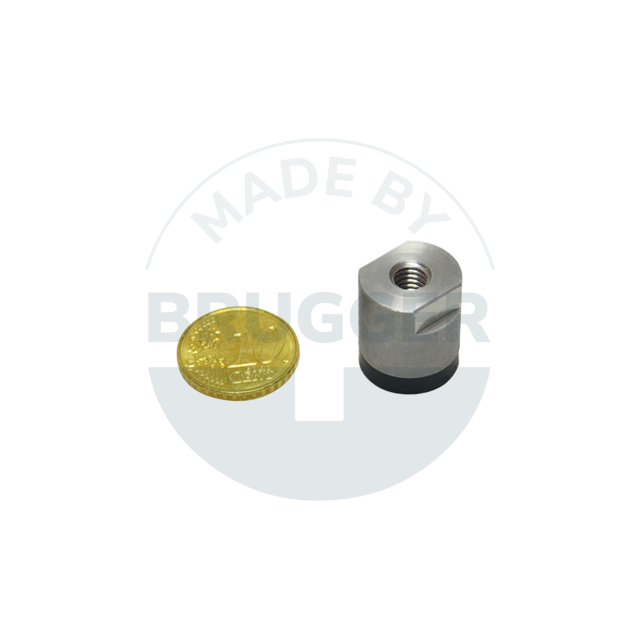

Pot magnet of NdFeB stainless steel housing with internal thread rubberised holding surface 16mm M6 | © Brugger GmbH

Topfmagnete ø16mm aus NdFeB, Edelstahlgehäuse, mit Innengewinde, Haftfläche gummiert

Article number: FG016NdA-06rh00
D mm: 16 +0.2/-0.2
H mm: 18 +0.2/-0.2
Thread MxL: M6x8
SW mm: 13
b mm: 5
Adhesive force* N: 23
Weight g: 22
Temperature °C: 80
FG020NdA-08rh0020 +0.2/-0.220 +0.2/-0.2M8x8177463980 Download CAD file

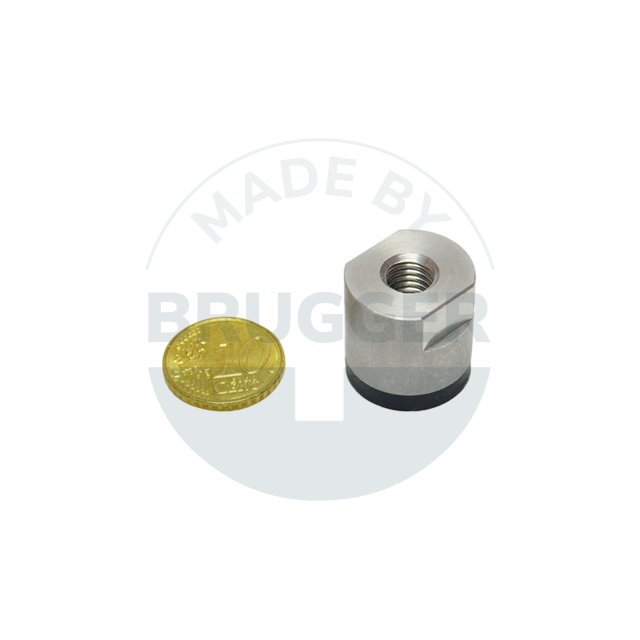

Pot magnet of NdFeB stainless steel housing with internal thread rubberised holding surface 20mm M8 | © Brugger GmbH

Topfmagnete ø20mm aus NdFeB, Edelstahlgehäuse, mit Innengewinde, Haftfläche gummiert

Article number: FG020NdA-08rh00
D mm: 20 +0.2/-0.2
H mm: 20 +0.2/-0.2
Thread MxL: M8x8
SW mm: 17
b mm: 7
Adhesive force* N: 46
Weight g: 39
Temperature °C: 80
FG025NdA-08rh0025 +0.2/-0.220 +0.2/-0.2M8x8217956480 Download CAD file

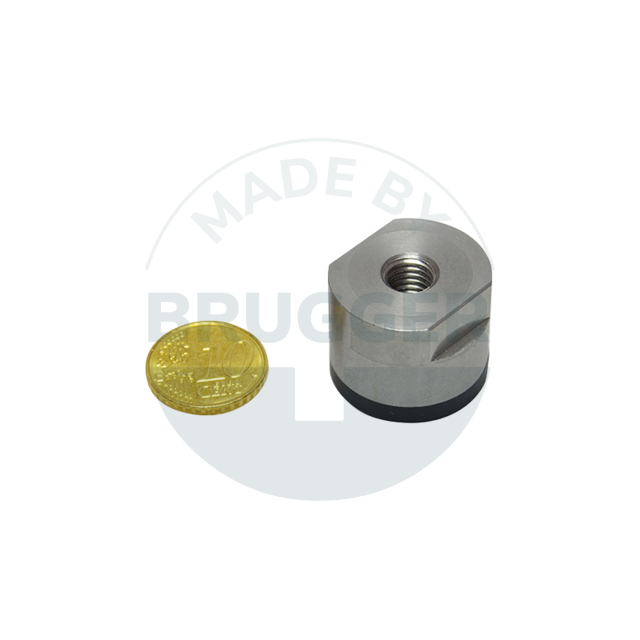

Pot magnet of NdFeB stainless steel housing with internal thread rubberised holding surface 25mm M8 | © Brugger GmbH

Topfmagnete ø25mm aus NdFeB, Edelstahlgehäuse, mit Innengewinde, Haftfläche gummiert

Article number: FG025NdA-08rh00
D mm: 25 +0.2/-0.2
H mm: 20 +0.2/-0.2
Thread MxL: M8x8
SW mm: 21
b mm: 7
Adhesive force* N: 95
Weight g: 64
Temperature °C: 80

* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
