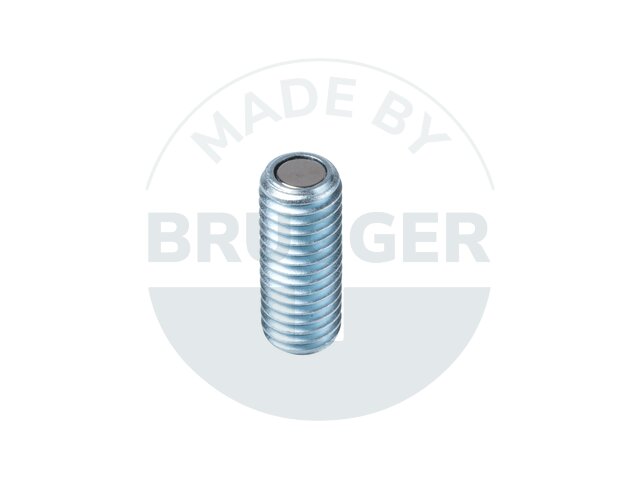

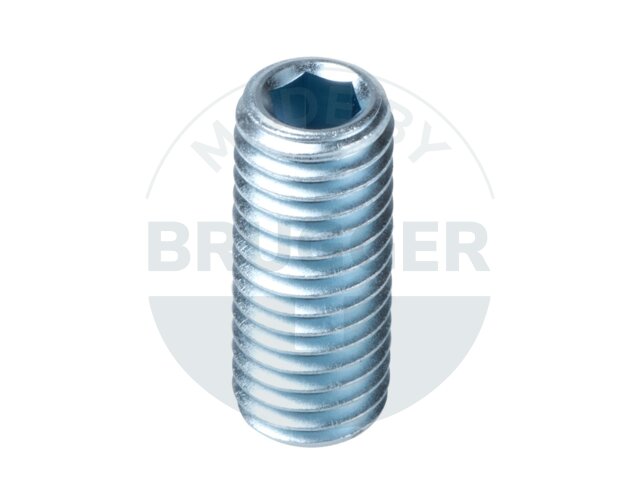

Pot magnets made of NdFeB, steel housing, with external thread and hexagon socket, galvanised
PRODUCT INFORMATION:

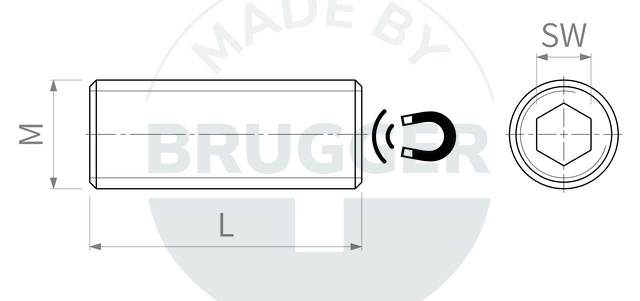

These galvanised magnet systems are manufactured from standard parts in accordance with DIN EN ISO 4026-45H. The dimensions and tolerances depend on the current status of the standard. The grub screws with hexagon socket have a continuous thread and are available in different lengths according to a defined standard. This simplified manufacturing process makes them particularly cost-effective. You also benefit from a freely adjustable magnetic stop thanks to the continuous thread of the grub screw.
Topfmagnete SW 3mm aus NdFeB, mit Gewinde M6x12mm und Innensechskant, verzinkt
Article number:
FG006NdAG06v-00
Thread MxL:
M6x12
SW mm:
3
Adhesive force* N:
2.5
Weight g:
2
Temperature °C:
80

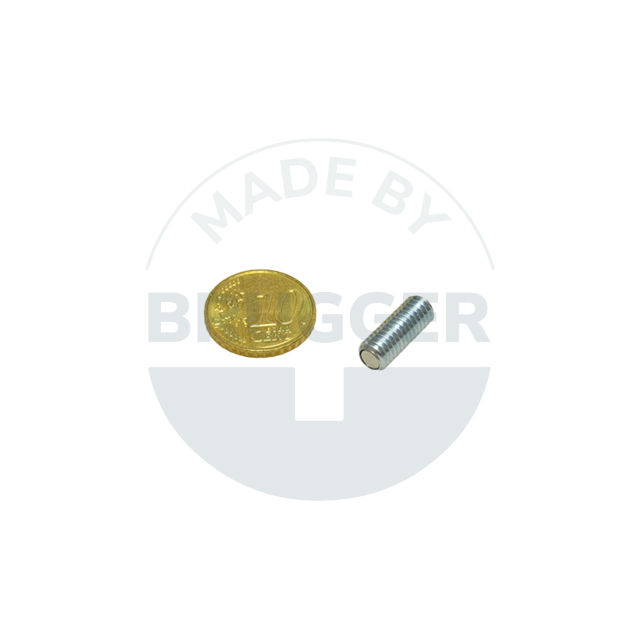

FG006NdAG06v-01
M6x16
3
2.5
3
80
Topfmagnete SW 3mm aus NdFeB, mit Gewinde M6x16mm und Innensechskant, verzinkt
Article number:
FG006NdAG06v-01
Thread MxL:
M6x16
SW mm:
3
Adhesive force* N:
2.5
Weight g:
3
Temperature °C:
80

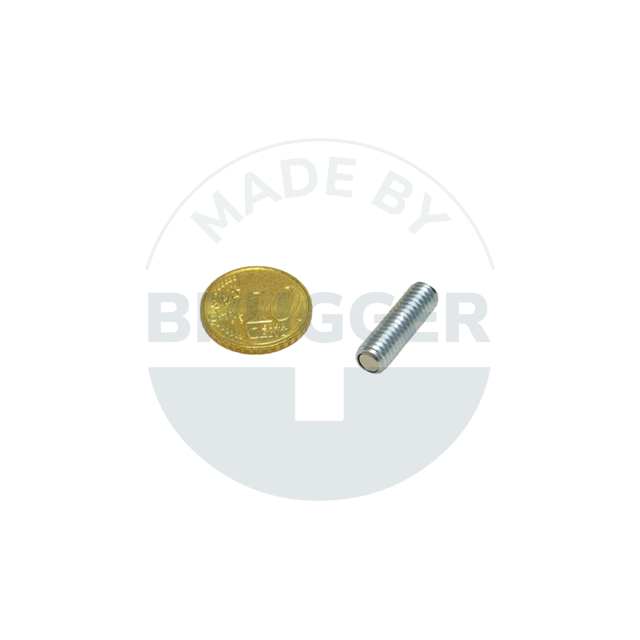

FG006NdAG06v-02
M6x20
3
2.5
4
80
Topfmagnete SW 3mm aus NdFeB, mit Gewinde M6x20mm und Innensechskant, verzinkt
Article number:
FG006NdAG06v-02
Thread MxL:
M6x20
SW mm:
3
Adhesive force* N:
2.5
Weight g:
4
Temperature °C:
80

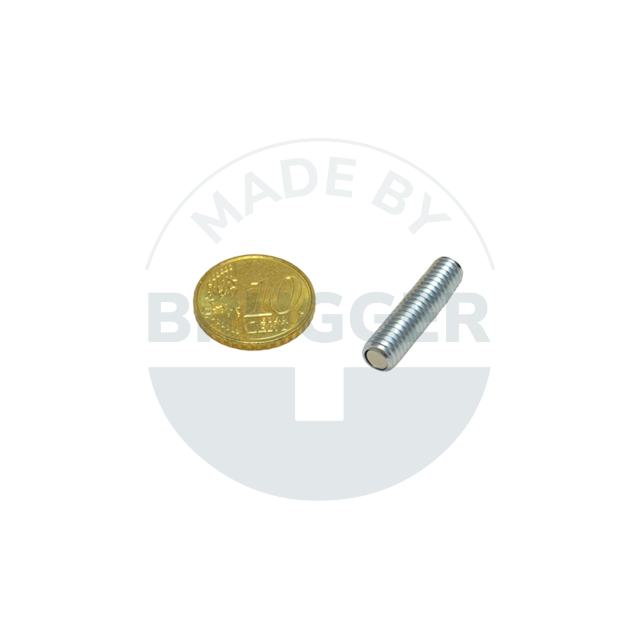

FG006NdAG06v-03
M6x25
3
2.5
5
80
Topfmagnete SW 3mm aus NdFeB, mit Gewinde M6x25mm und Innensechskant, verzinkt
Article number:
FG006NdAG06v-03
Thread MxL:
M6x25
SW mm:
3
Adhesive force* N:
2.5
Weight g:
5
Temperature °C:
80

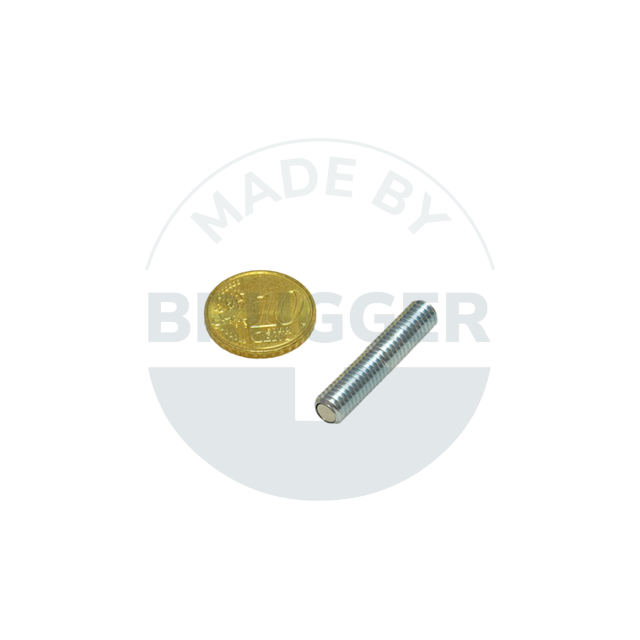

FG006NdAG06v-04
M6x30
3
2.5
6
80
Article number:
FG006NdAG06v-04
Thread MxL:
M6x30
SW mm:
3
Adhesive force* N:
2.5
Weight g:
6
Temperature °C:
80
FG008NdAG08v-00
M8x16
4
7
6
80
Topfmagnete SW 4mm aus NdFeB, mit Gewinde M8x16mm und Innensechskant, verzinkt
Article number:
FG008NdAG08v-00
Thread MxL:
M8x16
SW mm:
4
Adhesive force* N:
7
Weight g:
6
Temperature °C:
80
FG008NdAG08v-01
M8x20
4
7
8
80

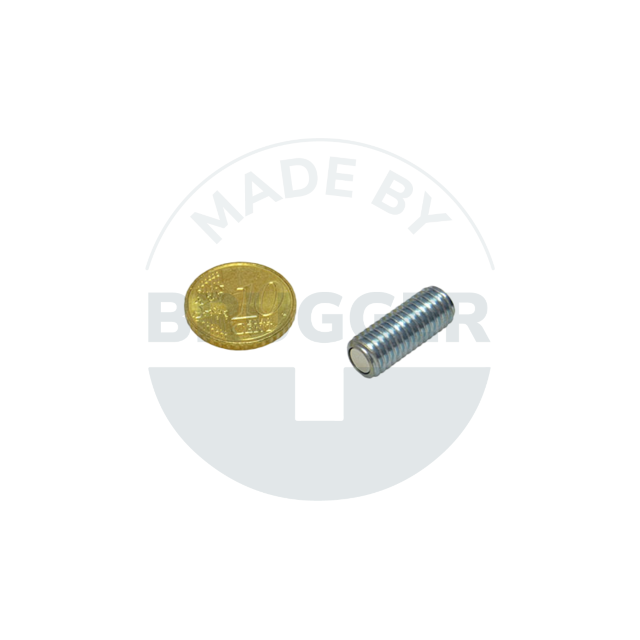

Topfmagnete SW 4mm aus NdFeB, mit Gewinde M8x20mm und Innensechskant, verzinkt
Article number:
FG008NdAG08v-01
Thread MxL:
M8x20
SW mm:
4
Adhesive force* N:
7
Weight g:
8
Temperature °C:
80
FG008NdAG08v-02
M8x25
4
7
10
80

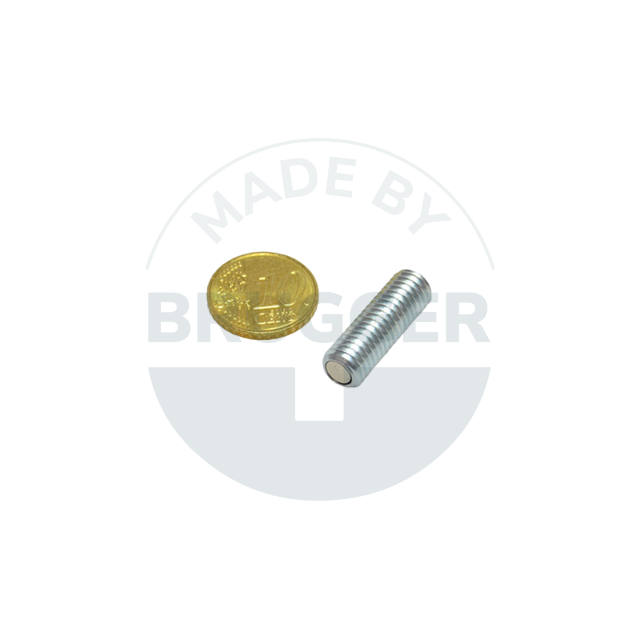

Topfmagnete SW 4mm aus NdFeB, mit Gewinde M8x25mm und Innensechskant, verzinkt
Article number:
FG008NdAG08v-02
Thread MxL:
M8x25
SW mm:
4
Adhesive force* N:
7
Weight g:
10
Temperature °C:
80
FG008NdAG08v-03
M8x30
4
7
11
80

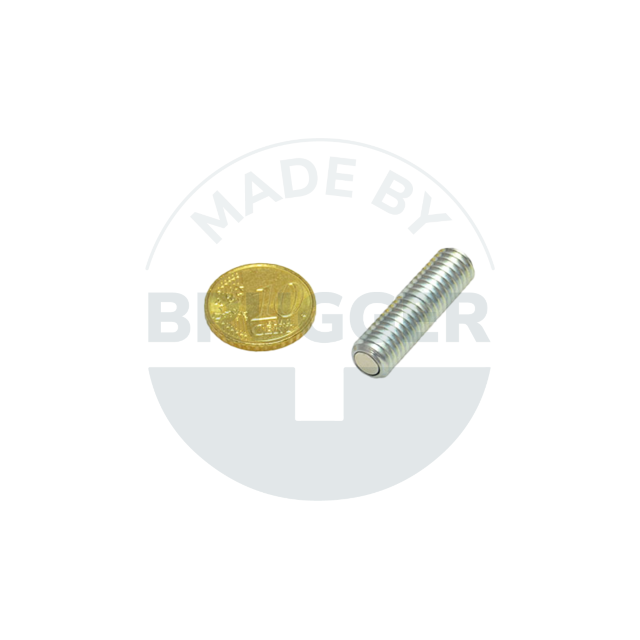

Article number:
FG008NdAG08v-03
Thread MxL:
M8x30
SW mm:
4
Adhesive force* N:
7
Weight g:
11
Temperature °C:
80

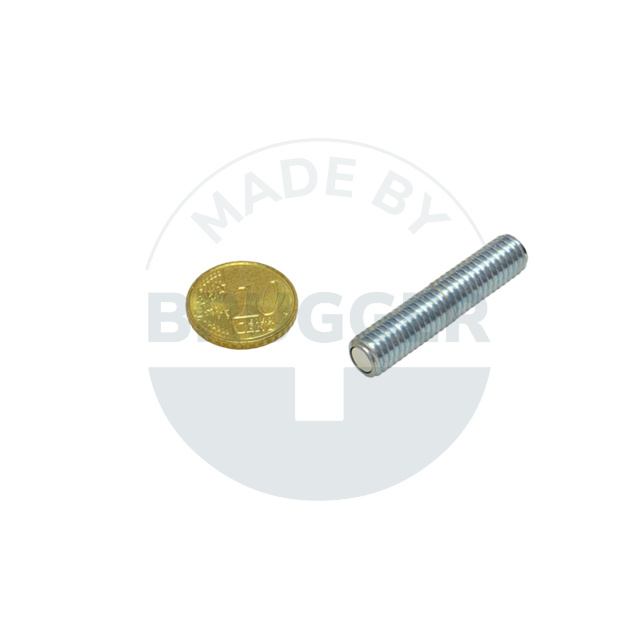

FG008NdAG08v-04
M8x40
4
7
15
80
Article number:
FG008NdAG08v-04
Thread MxL:
M8x40
SW mm:
4
Adhesive force* N:
7
Weight g:
15
Temperature °C:
80
FG010NdAG10v-00
M10x20
5
11
12
80

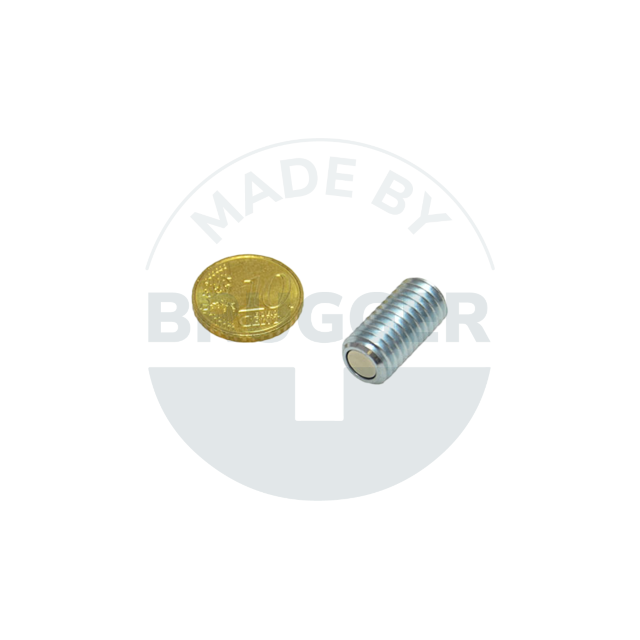

Topfmagnete SW 5mm aus NdFeB, mit Gewinde M10x20mm und Innensechskant, verzinkt
Article number:
FG010NdAG10v-00
Thread MxL:
M10x20
SW mm:
5
Adhesive force* N:
11
Weight g:
12
Temperature °C:
80
FG010NdAG10v-01
M10x25
5
11
15
80

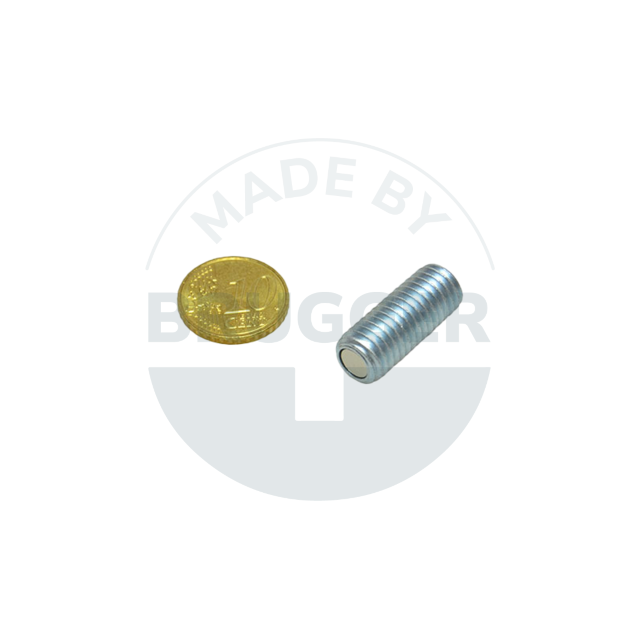

Topfmagnete SW 5mm aus NdFeB, mit Gewinde M10x25mm und Innensechskant, verzinkt
Article number:
FG010NdAG10v-01
Thread MxL:
M10x25
SW mm:
5
Adhesive force* N:
11
Weight g:
15
Temperature °C:
80

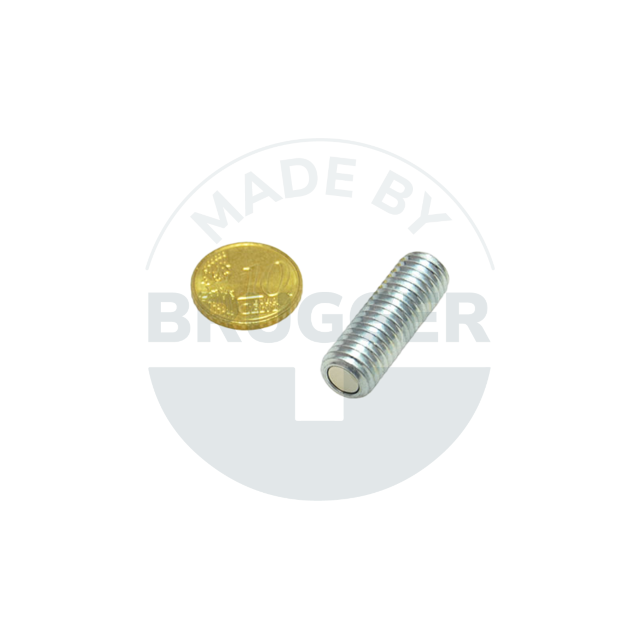

FG010NdAG10v-02
M10x30
5
11
18
80
Topfmagnete SW 5mm aus NdFeB, mit Gewinde M10x30mm und Innensechskant, verzinkt
Article number:
FG010NdAG10v-02
Thread MxL:
M10x30
SW mm:
5
Adhesive force* N:
11
Weight g:
18
Temperature °C:
80
FG010NdAG10v-03
M10x40
5
11
24
80

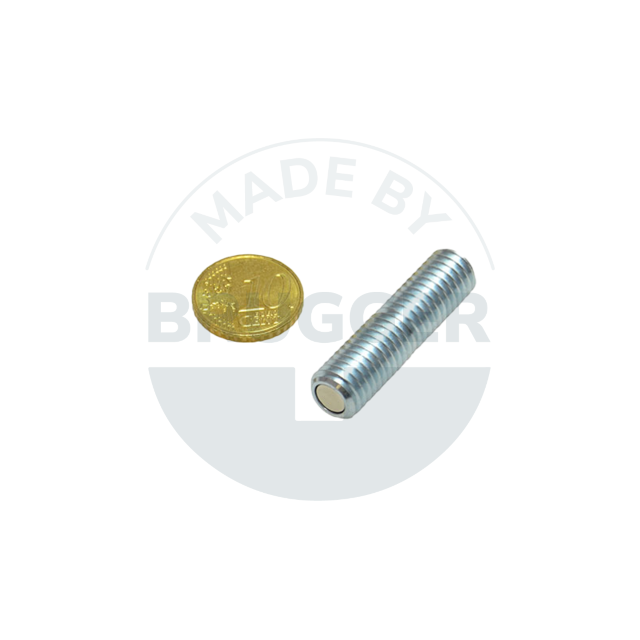

Article number:
FG010NdAG10v-03
Thread MxL:
M10x40
SW mm:
5
Adhesive force* N:
11
Weight g:
24
Temperature °C:
80
FG010NdAG10v-04
M10x50
5
11
30
80

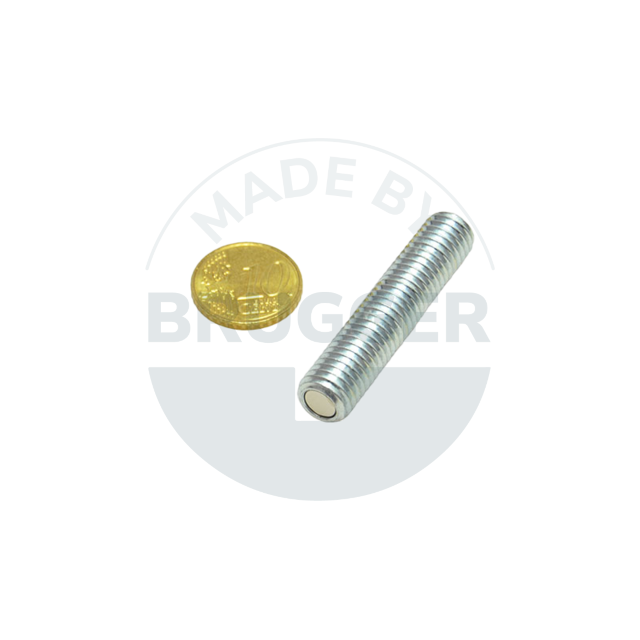

Article number:
FG010NdAG10v-04
Thread MxL:
M10x50
SW mm:
5
Adhesive force* N:
11
Weight g:
30
Temperature °C:
80
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
