Flat pot magnets of Samarium-Cobalt (SmCo)

Pot magnets made of SmCo, stainless steel housing, with cylinder bore, up to 350°C

PRODUCT NOTE
This pot magnet sets new standards in terms of heat resistance and strength. The high-performance Samarium Cobalt (SmCo) core guarantees exceptional adhesive force, even at temperatures of up to 350 °C.
The robust stainless steel housing protects the magnet from external influences and ensures a long service life. The integrated cylinder bore enables simple and secure mounting in various applications.

Ideal for:

  • High temperature applications
  • Industrial manufacturing processes
  • Material handling with extreme conditions
As an alternative to the standard, we also offer customised solutions:
" alternative thread sizes and lengths
" Sleeve made of stainless steel 1.4301 or 1.4571

Data sheet

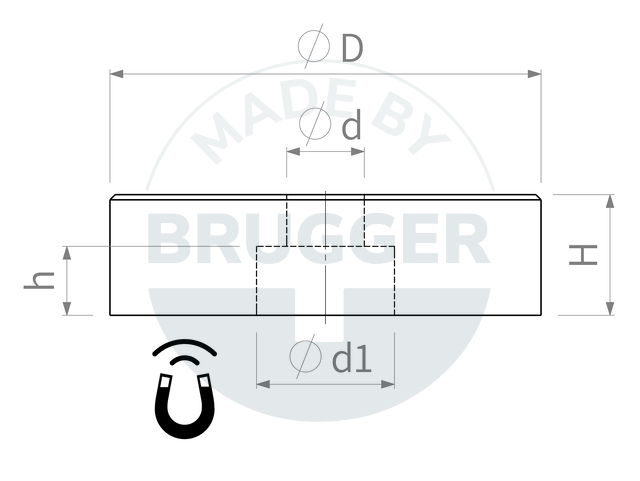

Article numberD mmd mmd1 mmH mmh mmAdhesive force* NWeight gTemperature °C
F16-SCCVAHT16 +0.1/-0.13,5 +0.1/-0.16 +0.1/-0.14,5 +0.1/-0.13415.8350 Download CAD file

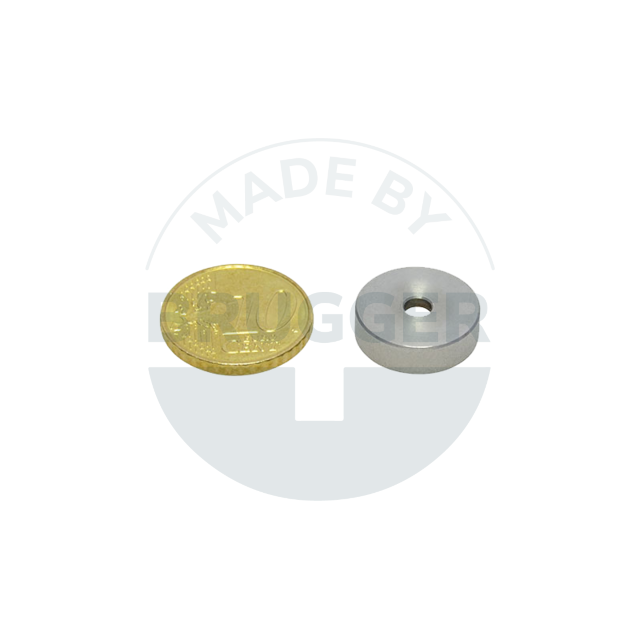

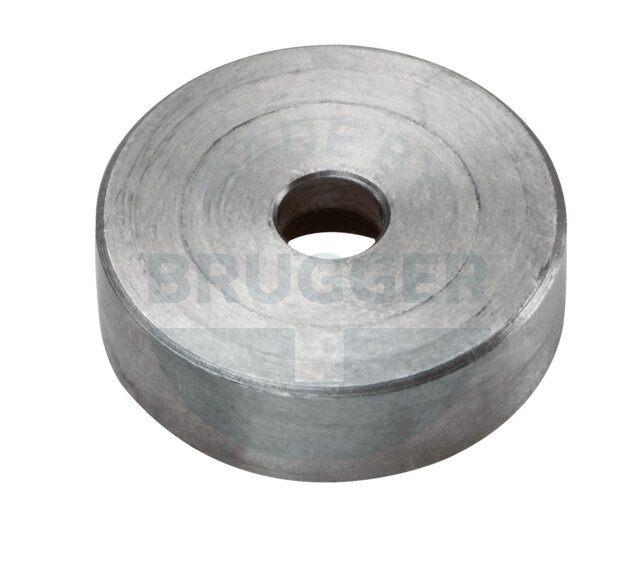

Pot magnet of SmCo stainless steel housing with cylinder bore up to 350°C 16mm | © Brugger GmbH

Topfmagnete ø16mm, aus SmCo, Edelstahlgehäuse, mit Zylinderbohrung, bis 350°C

Article number: F16-SCCVAHT
D mm: 16 +0.1/-0.1
d mm: 3,5 +0.1/-0.1
d1 mm: 6 +0.1/-0.1
H mm: 4,5 +0.1/-0.1
h mm: 3
Adhesive force* N: 41
Weight g: 5.8
Temperature °C: 350
F20-SCCVAHT20 +0.1/-0.14,5 +0.1/-0.18 +0.1/-0.16 +0.1/-0.13,56013350 Download CAD file

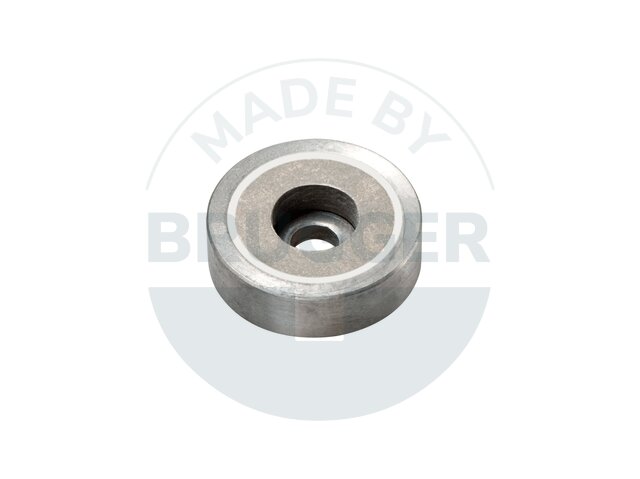

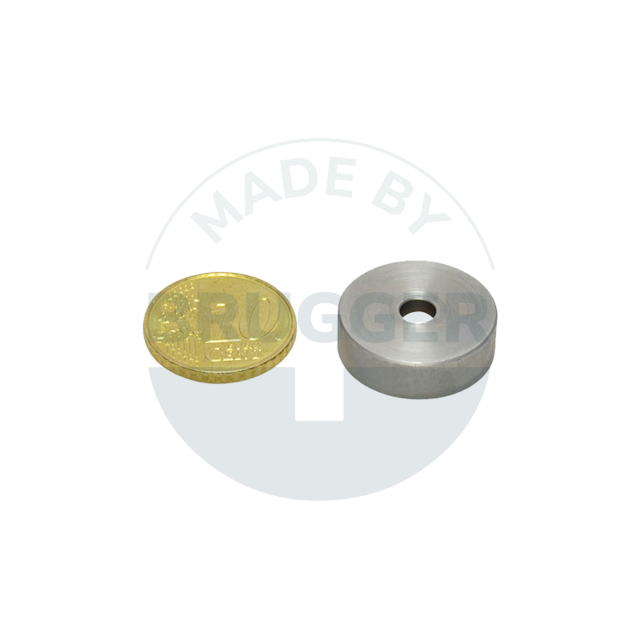

Pot magnet of SmCo stainless steel housing with cylinder bore up to 350°C 20mm | © Brugger GmbH

Topfmagnete ø20mm, aus SmCo, Edelstahlgehäuse, mit Zylinderbohrung, bis 350°C

Article number: F20-SCCVAHT
D mm: 20 +0.1/-0.1
d mm: 4,5 +0.1/-0.1
d1 mm: 8 +0.1/-0.1
H mm: 6 +0.1/-0.1
h mm: 3,5
Adhesive force* N: 60
Weight g: 13
Temperature °C: 350
F25-SCCVAHT25 +0.1/-0.14,5 +0.1/-0.18 +0.1/-0.17 +0.2/-0.248024350 Download CAD file

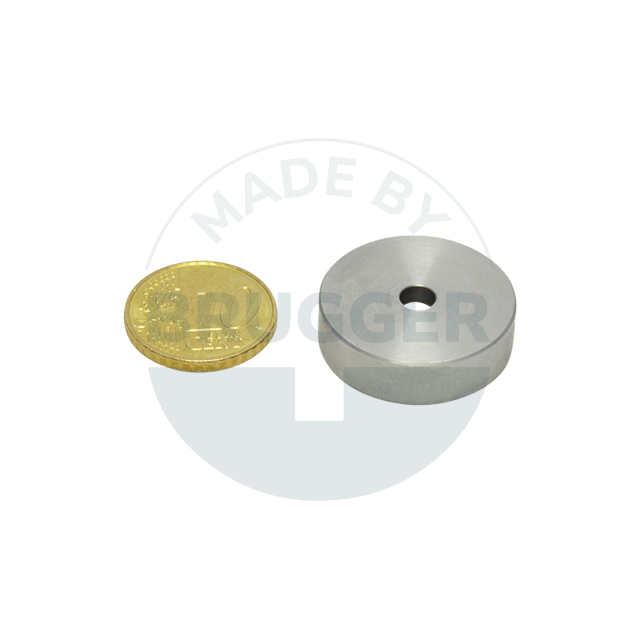

Pot magnet of SmCo stainless steel housing with cylinder bore up to 350°C 25mm | © Brugger GmbH

Topfmagnete ø25mm, aus SmCo, Edelstahlgehäuse, mit Zylinderbohrung, bis 350°C

Article number: F25-SCCVAHT
D mm: 25 +0.1/-0.1
d mm: 4,5 +0.1/-0.1
d1 mm: 8 +0.1/-0.1
H mm: 7 +0.2/-0.2
h mm: 4
Adhesive force* N: 80
Weight g: 24
Temperature °C: 350
F32-SCCVAHT32 +0.1/-0.15,5 +0.1/-0.111 +0.1/-0.17 +0.2/-0.2420039350 Download CAD file

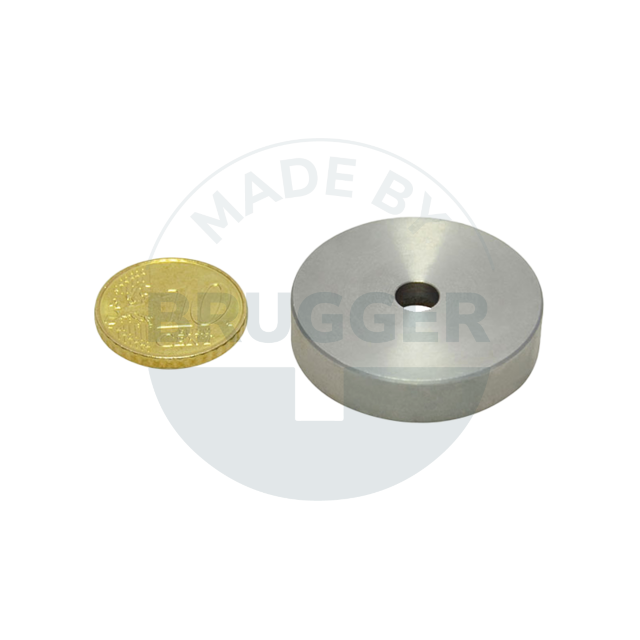

Pot magnet of SmCo stainless steel housing with cylinder bore up to 350°C 32mm | © Brugger GmbH

Topfmagnete ø32mm, aus SmCo, Edelstahlgehäuse, mit Zylinderbohrung, bis 350°C

Article number: F32-SCCVAHT
D mm: 32 +0.1/-0.1
d mm: 5,5 +0.1/-0.1
d1 mm: 11 +0.1/-0.1
H mm: 7 +0.2/-0.2
h mm: 4
Adhesive force* N: 200
Weight g: 39
Temperature °C: 350
F40-SCCVAHT40 +0.1/-0.15,5 +0.1/-0.110,5 +0.1/-0.18 +0.2/-0.2442075350 Download CAD file

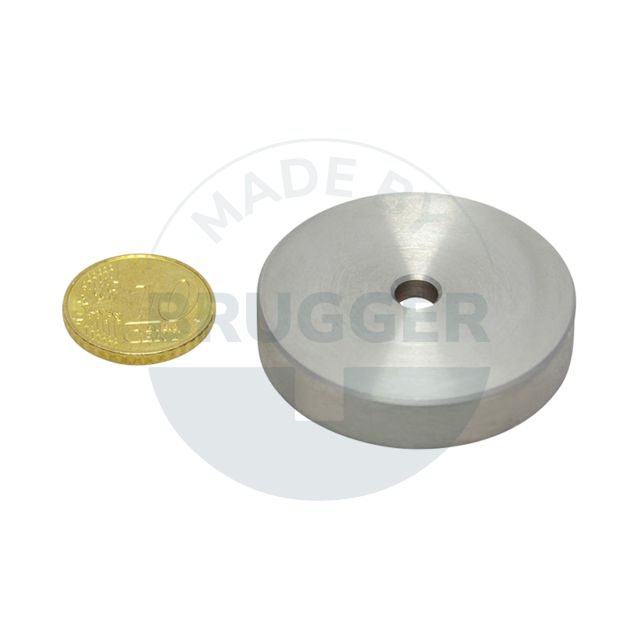

Pot magnet of SmCo stainless steel housing with cylinder bore up to 350°C 40mm | © Brugger GmbH

Topfmagnete ø40mm, aus SmCo, Edelstahlgehäuse, mit Zylinderbohrung, bis 350°C

Article number: F40-SCCVAHT
D mm: 40 +0.1/-0.1
d mm: 5,5 +0.1/-0.1
d1 mm: 10,5 +0.1/-0.1
H mm: 8 +0.2/-0.2
h mm: 4
Adhesive force* N: 420
Weight g: 75
Temperature °C: 350

* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
