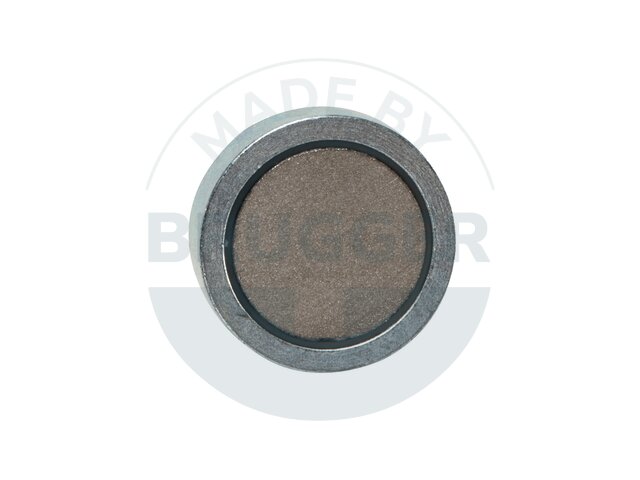

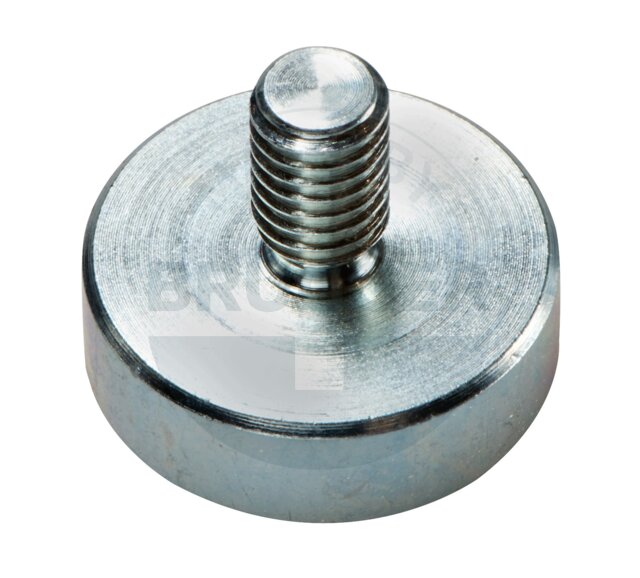

Pot magnets made of SmCo, steel housing, with external thread, galvanised
PRODUCT NOTE:
Maximum performance in a compact form: This pot magnet system with Samarium Cobalt core offers exceptional holding power, even at high temperatures. The robust galvanised steel construction with a threaded stud guarantees durability and safe use. Ideal for demanding applications!
As an alternative to the standard, we also offer customised solutions: " Black galvanised surface for housing, resulting in higher corrosion resistance (up to 720 hours in salt spray test - depending on magnet material)
Topfmagnete ø 8 mm aus SmCo, Stahlgehäuse, mit Außengewinde, verzinkt
Article number:
F8-SCAGvM4x8
D mm:
8 +0.1/-0.1
H mm:
4,5 +0.1/-0.1
HGes mm:
12,5
Thread MxL:
M4x8
Adhesive force* N:
11
Weight g:
2
Temperature °C:
200
F10-SCAGvM4x8
10 +0.1/-0.1
4,5 +0.1/-0.1
12,5
M4x8
20
3
200
Topfmagnete ø 10 mm aus SmCo, Stahlgehäuse, mit Außengewinde, verzinkt
Article number:
F10-SCAGvM4x8
D mm:
10 +0.1/-0.1
H mm:
4,5 +0.1/-0.1
HGes mm:
12,5
Thread MxL:
M4x8
Adhesive force* N:
20
Weight g:
3
Temperature °C:
200
F13-SCAGvM5x8
13 +0.1/-0.1
4,5 +0.1/-0.1
12,5
M5x8
40
6
200
Topfmagnete ø 13 mm aus SmCo, Stahlgehäuse, mit Außengewinde, verzinkt
Article number:
F13-SCAGvM5x8
D mm:
13 +0.1/-0.1
H mm:
4,5 +0.1/-0.1
HGes mm:
12,5
Thread MxL:
M5x8
Adhesive force* N:
40
Weight g:
6
Temperature °C:
200
F16-SCAGvM6x8
16 +0.1/-0.1
4,5 +0.1/-0.1
12,5
M6x8
60
8
200
Topfmagnete ø 16 mm aus SmCo, Stahlgehäuse, mit Außengewinde, verzinkt
Article number:
F16-SCAGvM6x8
D mm:
16 +0.1/-0.1
H mm:
4,5 +0.1/-0.1
HGes mm:
12,5
Thread MxL:
M6x8
Adhesive force* N:
60
Weight g:
8
Temperature °C:
200
F20-SCAGvM6x10
20 +0.1/-0.1
6 +0.1/-0.1
16
M6x10
90
18
200

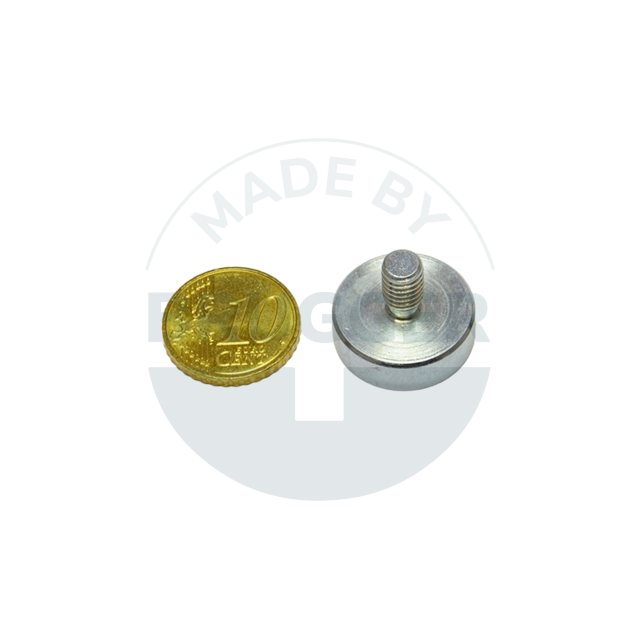

Topfmagnete ø 20 mm aus SmCo, Stahlgehäuse, mit Außengewinde, verzinkt
Article number:
F20-SCAGvM6x10
D mm:
20 +0.1/-0.1
H mm:
6 +0.1/-0.1
HGes mm:
16
Thread MxL:
M6x10
Adhesive force* N:
90
Weight g:
18
Temperature °C:
200
F25-SCAGvM6x10
25 +0.1/-0.1
7 +0.2/-0.2
17
M6x10
150
28
200

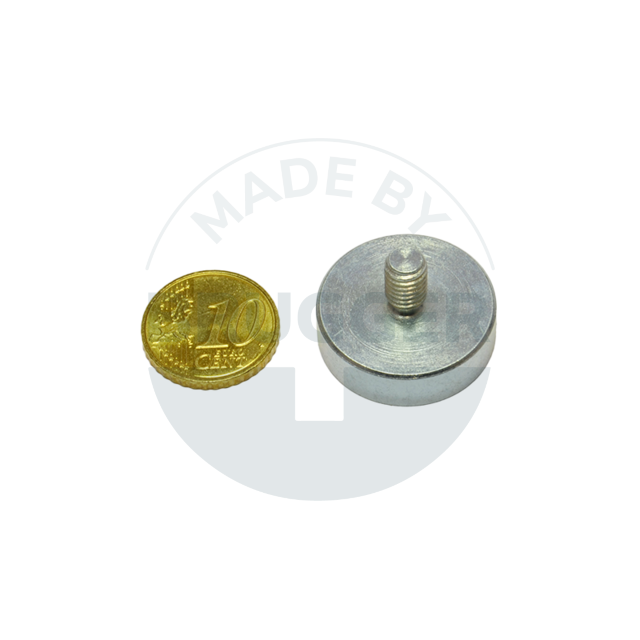

Topfmagnete ø 25 mm aus SmCo, Stahlgehäuse, mit Außengewinde, verzinkt
Article number:
F25-SCAGvM6x10
D mm:
25 +0.1/-0.1
H mm:
7 +0.2/-0.2
HGes mm:
17
Thread MxL:
M6x10
Adhesive force* N:
150
Weight g:
28
Temperature °C:
200
F32-SCAGvM6x10
32 +0.1/-0.1
7 +0.2/-0.2
17
M6x10
220
42
200

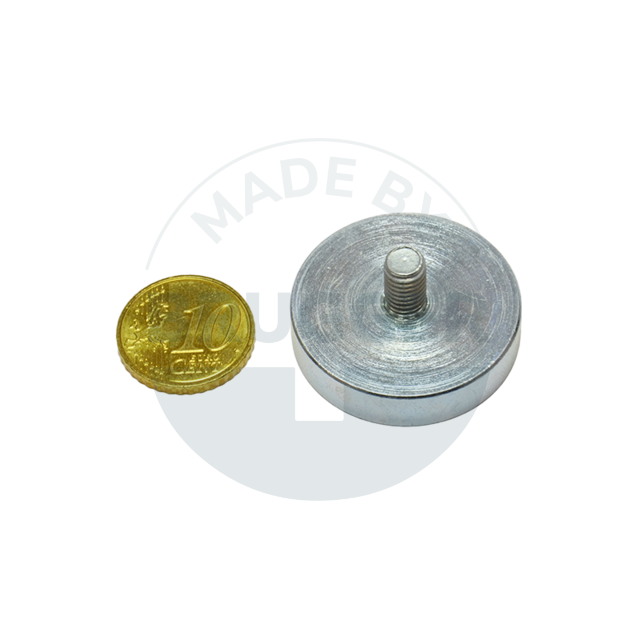

Topfmagnete ø 32 mm aus SmCo, Stahlgehäuse, mit Außengewinde, verzinkt
Article number:
F32-SCAGvM6x10
D mm:
32 +0.1/-0.1
H mm:
7 +0.2/-0.2
HGes mm:
17
Thread MxL:
M6x10
Adhesive force* N:
220
Weight g:
42
Temperature °C:
200
F40-SCAGvM8x12
40 +0.1/-0.1
8 +0.2/-0.2
20
M8x12
580
82
200

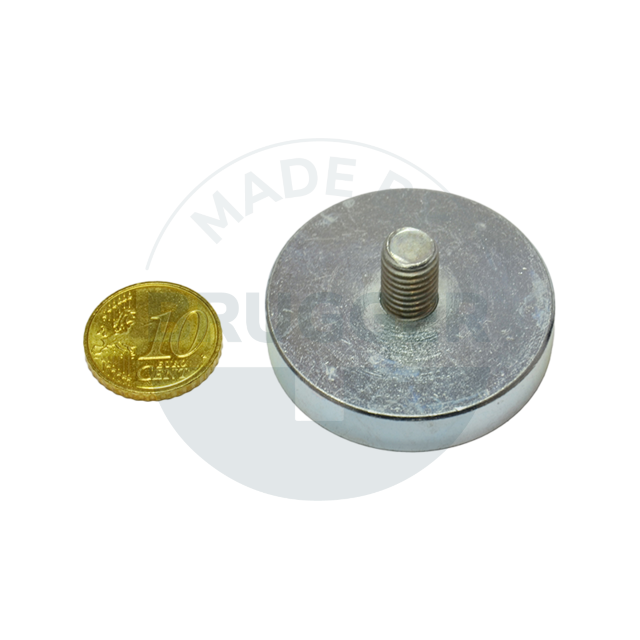

Topfmagnete ø 40 mm aus SmCo, Stahlgehäuse, mit Außengewinde, verzinkt
Article number:
F40-SCAGvM8x12
D mm:
40 +0.1/-0.1
H mm:
8 +0.2/-0.2
HGes mm:
20
Thread MxL:
M8x12
Adhesive force* N:
580
Weight g:
82
Temperature °C:
200
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
