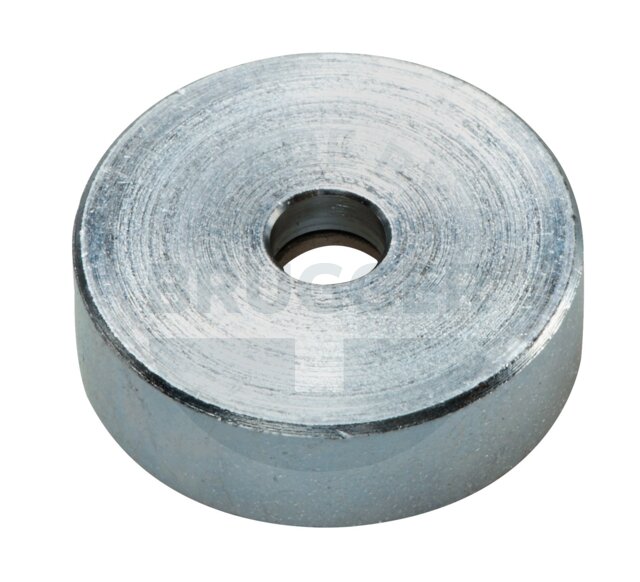

Flat pot magnets of Samarium-Cobalt (SmCo)

Pot magnets made of SmCo, steel housing, with hole and countersink, galvanised, up to 280°C

PRODUCT NOTE:
Experience the difference: This pot magnet system with Samarium Cobalt core combines maximum performance in a compact design. Ideal for demanding applications, the system has exceptional holding power, even at high temperatures up to 280 °C. The robust and galvanised stainless steel housing with bore and countersink offers additional durability and easy mounting.

As an alternative to the standard version, we also offer customised solutions:
" Black galvanised surface for housing, resulting in higher corrosion resistance (up to 720 hours in salt spray test - depending on magnet material)

Data sheet
Article numberD mmd mmd1 mmH mmAdhesive force* NWeight gTemperature °C
F16-SCCvT16 +0.1/-0.13,5 +0.1/-0.16,6 +1/04,5 +0.1/-0.1576280 Download CAD file

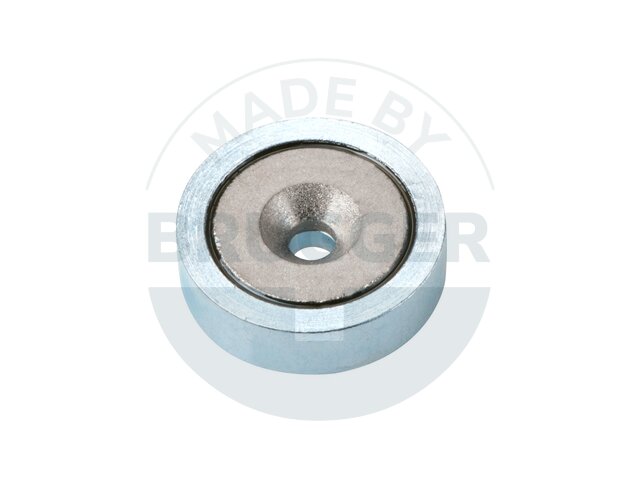

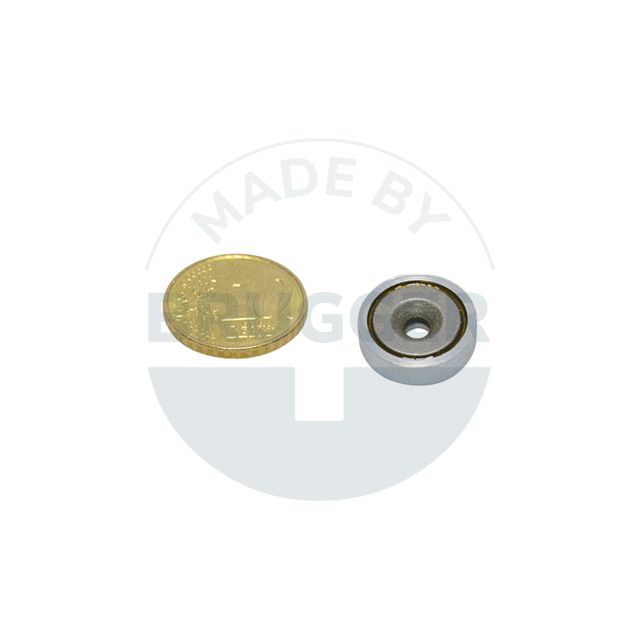

Pot magnet of SmCo steel housing with bore and countersink galvanised up to 280°C 16mm backsite | © Brugger GmbH

Flachgreifer ø16mm aus SmCo, mit Bohrung und Senkung, verzinkt, bis 280°C

Article number: F16-SCCvT
D mm: 16 +0.1/-0.1
d mm: 3,5 +0.1/-0.1
d1 mm: 6,6 +1/0
H mm: 4,5 +0.1/-0.1
Adhesive force* N: 57
Weight g: 6
Temperature °C: 280
F20-SCCvT20 +0.1/-0.14,5 +0.1/-0.19,3 +1/06 +0.1/-0.18113280 Download CAD file

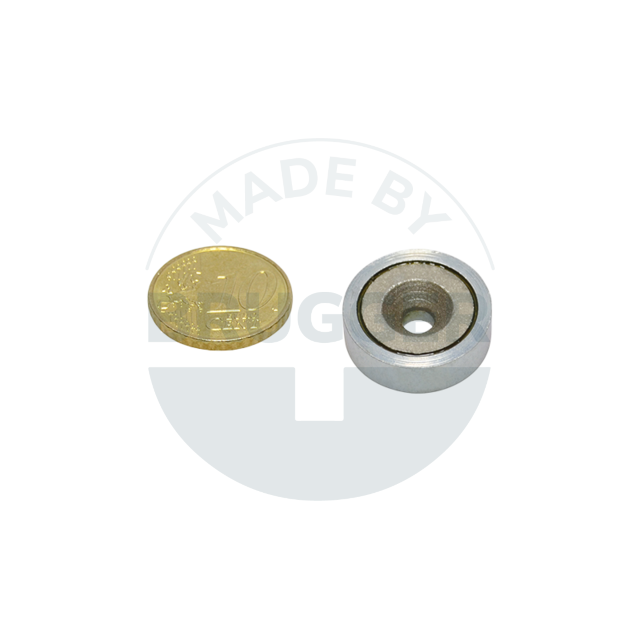

Pot magnet of SmCo steel housing with bore and countersink galvanised up to 280°C 20mm backsite | © Brugger GmbH

Flachgreifer ø20mm aus SmCo, mit Bohrung und Senkung, verzinkt, bis 280°C

Article number: F20-SCCvT
D mm: 20 +0.1/-0.1
d mm: 4,5 +0.1/-0.1
d1 mm: 9,3 +1/0
H mm: 6 +0.1/-0.1
Adhesive force* N: 81
Weight g: 13
Temperature °C: 280
F25-SCCvT25 +0.1/-0.14,5 +0.1/-0.19,2 +1/07 +0.1/-0.110525280 Download CAD file

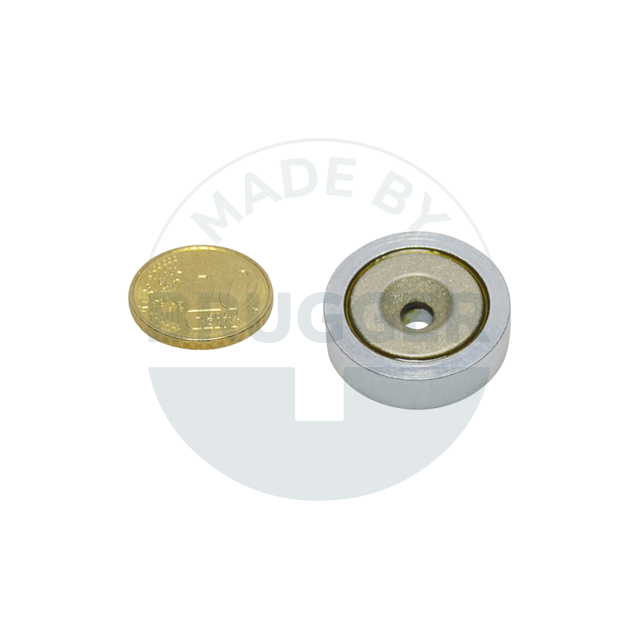

Pot magnet of SmCo steel housing with bore and countersink galvanised up to 280°C 25mm backsite | © Brugger GmbH

Flachgreifer ø25mm aus SmCo, mit Bohrung und Senkung, verzinkt, bis 280°C

Article number: F25-SCCvT
D mm: 25 +0.1/-0.1
d mm: 4,5 +0.1/-0.1
d1 mm: 9,2 +1/0
H mm: 7 +0.1/-0.1
Adhesive force* N: 105
Weight g: 25
Temperature °C: 280
F32-SCCvT32 +0.1/-0.15,5 +0.1/-0.111,5 +1/07 +0.1/-0.123540280 Download CAD file

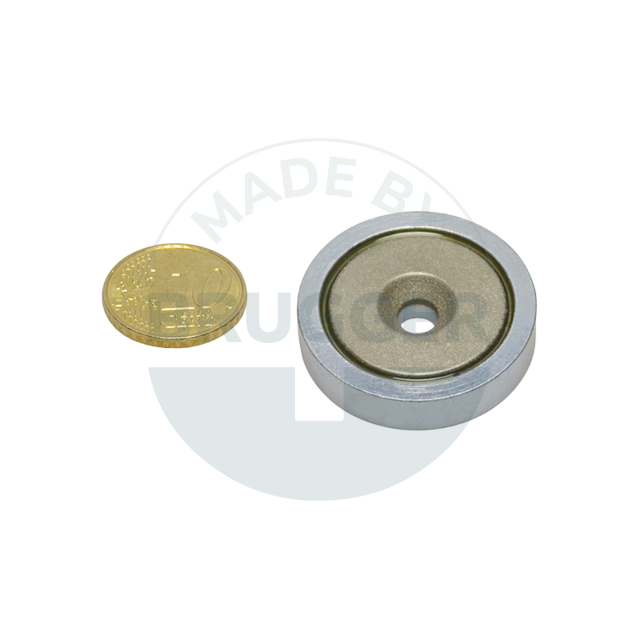

Pot magnet of SmCo steel housing with bore and countersink galvanised up to 280°C 32mm backsite | © Brugger GmbH

Flachgreifer ø32mm aus SmCo, mit Bohrung und Senkung, verzinkt, bis 280°C

Article number: F32-SCCvT
D mm: 32 +0.1/-0.1
d mm: 5,5 +0.1/-0.1
d1 mm: 11,5 +1/0
H mm: 7 +0.1/-0.1
Adhesive force* N: 235
Weight g: 40
Temperature °C: 280
F40-SCCvT40 +0.1/-0.15,5 +0.1/-0.111,5 +1/08 +0.1/-0.154075280 Download CAD file

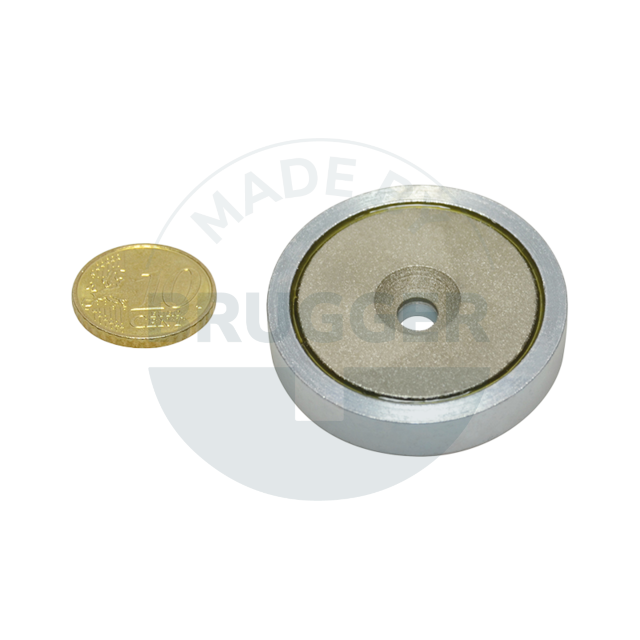

Pot magnet of SmCo steel housing with bore and countersink galvanised up to 280°C 40mm backsite | © Brugger GmbH

Flachgreifer ø40mm aus SmCo, mit Bohrung und Senkung, verzinkt, bis 280°C

Article number: F40-SCCvT
D mm: 40 +0.1/-0.1
d mm: 5,5 +0.1/-0.1
d1 mm: 11,5 +1/0
H mm: 8 +0.1/-0.1
Adhesive force* N: 540
Weight g: 75
Temperature °C: 280

* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
